iW7039S-00-QFN4 - Renesas Electronics

Description: The iW7039 LED driver for LCD backlighting integrates 32 precision current sinks with advanced digital control technology to improve brightness control in direct backlit, High Dynamic Range (HDR) displays. The digital control block uses Renesas' BroadLED™ adaptive switch technology, improving thermal performance by optimizing the voltage drop across each LED string while enabling precision matching with unbinned LEDs.The iW7039 also uses Renesas' patented AnyMode™ dimming, which offers comprehensive, simple

Download iW7039S-00-QFN4 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this iW7039S-00-QFN4 model

Email notifications will be applied after download.

Send part feedback

Symbol

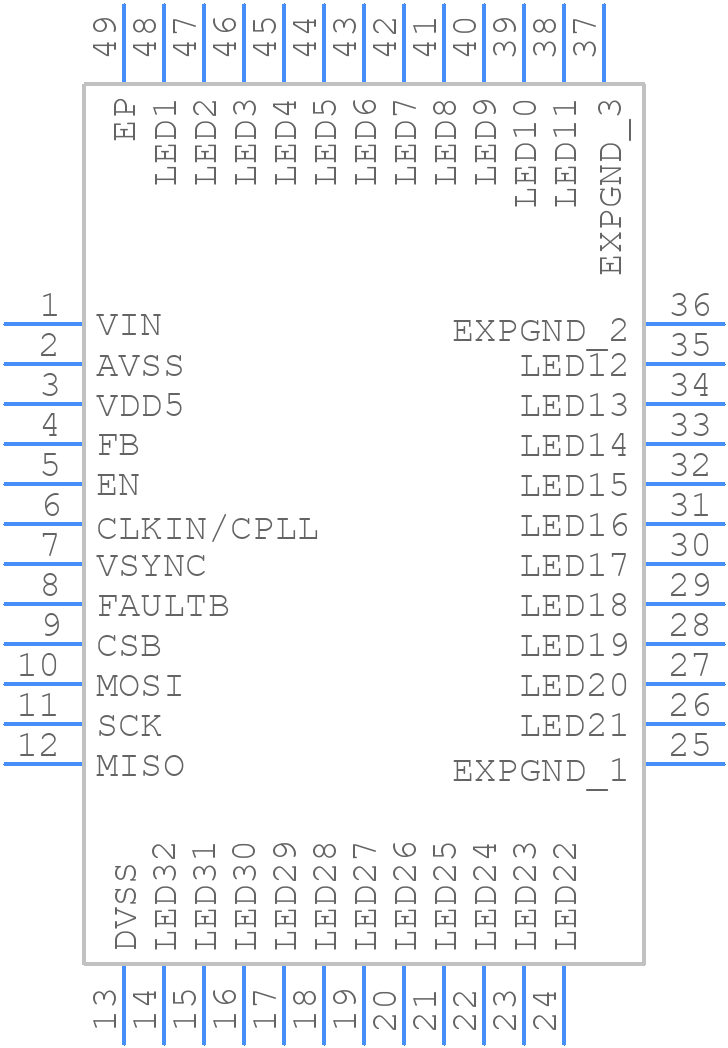

iW7039S-00-QFN4 - Renesas Electronics - PCB symbol

PCB Footprints

iW7039S-00-QFN4 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Lead 7mmx7mm QFN

3D Models

iW7039S-00-QFN4 - Renesas Electronics - 3D model - Quad Flat No-Lead - 48-Lead 7mmx7mm QFN

Datasheet Download Datasheet
Stock & Prices Price & Stock for iW7039S-00-QFN4
Part Number iW7039S-00-QFN4
Manufacturer Renesas Electronics
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 48-Lead 7mmx7mm QFN
Released Date Jul 18, 2022
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

iW7039S-00-QFN4 Details

Manufacturer Part Number:
iW7039S-00-QFN4
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

iW7039S-00-QFN4 Overview

Use the download button to access the iW7039S-00-QFN4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like iW703, or try a keyword search, such as Display Drivers
