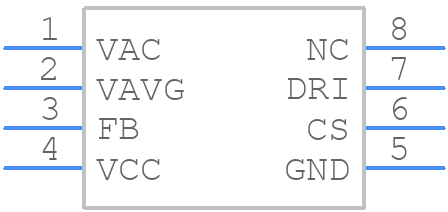

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for sd6857
- Part Number sd6857
- Manufacturer Silan
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOP-8-225-1.27
- Released Date Apr 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
sd6857 Details
-
Manufacturer Part Number:
sd6857
-
Manufacturer:
Hangzhou Silan Microelectronics CO LTD
Trust Checks
Community Provided
System Verified
Community Approved
sd6857 Overview
Use the download button to access the sd6857 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like sd685,
or try a keyword search, such as Pulse/Datacom Transformers
