sdta28r2w - ChromeLED

Description: Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 2V 20mA 0.394" H x 0.886" W x 0.150" D (10.00mm x 22.50mm x 3.80mm) 12-SMD, No Lead

Download sdta28r2w Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this sdta28r2w model

Email notifications will be applied after download.

Send part feedback

Symbol

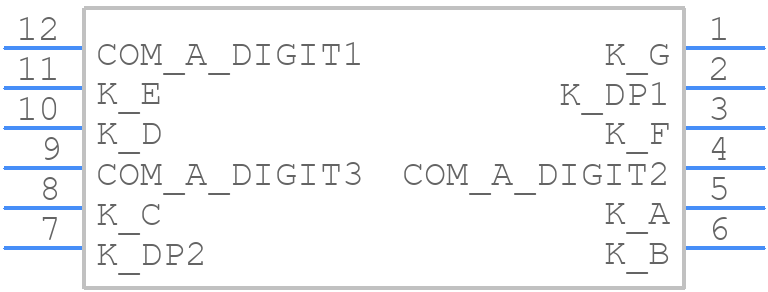

sdta28r2w - ChromeLED - PCB symbol

PCB Footprints

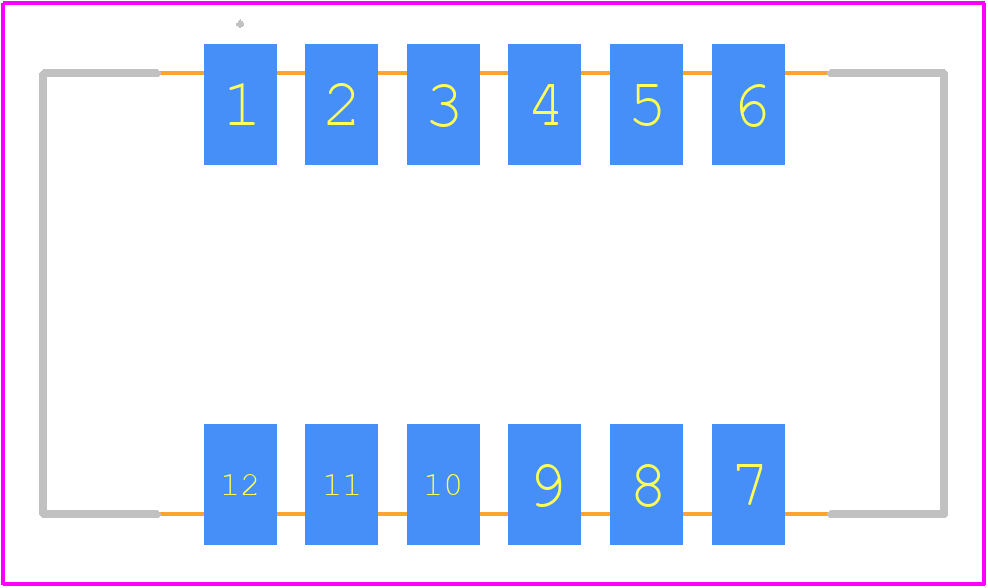

sdta28r2w - ChromeLED PCB footprint - Other - Other - 12-SMD, No Lead
