u3500 - UNI-SEMI

Description: Wide 10V to 120V Input Range DC-DC 12V/10A Typical Switching CurrentApplication  Hysteretic Control: No Compensation 70KHz Switching Frequency  PWM Control Input for step-downApplication  Short-Circuit Shutdown (SCS) withIntegrated IC  Low Quiescent Current  Thermal Shutdown  Available in a ESOP-8 Package with anExposed Pad

Download u3500 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this u3500 model

Email notifications will be applied after download.

Send part feedback

Symbol

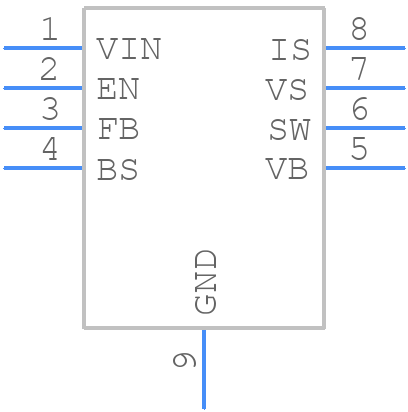

u3500 - UNI-SEMI - PCB symbol

PCB Footprints

u3500 - UNI-SEMI PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8 EP

3D Models

u3500 - UNI-SEMI - 3D model - Small Outline Packages - SOP-8 EP

Datasheet Download Datasheet
Stock & Prices Price & Stock for u3500
Part Number u3500
Manufacturer UNI-SEMI
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOP-8 EP
Released Date Nov 19, 2024
Last Modified Date Nov 19, 2024 9:57 AM UTC
Pinout / Pin List Click Here (Member Only)

u3500 Details

Manufacturer Part Number:
u3500
Manufacturer:
UNI Semiconductor Ltd
