#B953AS-181M=P3 - Murata Electronics

Description: DS126C2 Series Inductor 180μH ±20% 4949 (125125)

Download #B953AS-181M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
#B953AS-181M=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

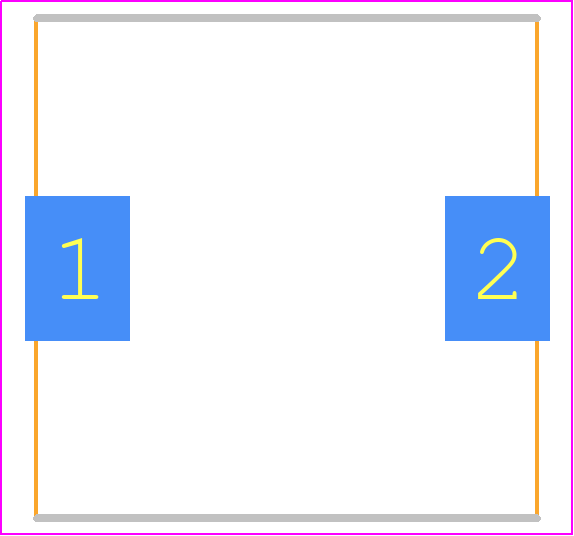

#B953AS-181M=P3 - Murata Electronics PCB footprint - Other - Other - 4949 (125125) T=6.8mm
click to zoom
3D Models
#B953AS-181M=P3 - Murata Electronics - 3D model - Other - 4949 (125125) T=6.8mm
click to zoom

#B953AS-181M=P3 Details

  • Manufacturer Part Number:

    #B953AS-181M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    1

  • Case/Size Code:

    4949

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.29 Ω

  • Inductance-Nom (L):

    180 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    6.8 mm

  • Package Length:

    12.5 mm

  • Package Style:

    SMT

  • Package Width:

    12.5 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    1.1 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%
