Part Image

0026602100 - Molex

Description: KK 396 Header, Vertical, without Peg, 10 Circuits, Tin (Sn) Plating

Download 0026602100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0026602100 - Molex - PCB symbol
click to zoom
PCB Footprints

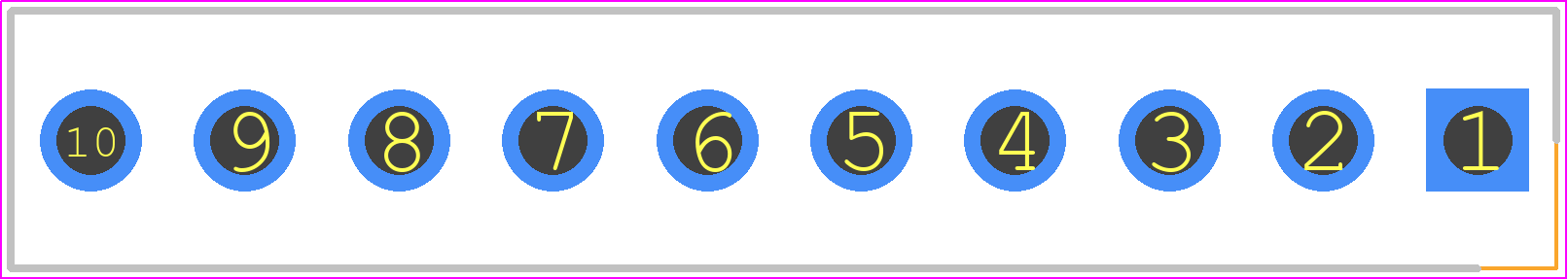

0026602100 - Molex PCB footprint - Header, Vertical - Header, Vertical - 0026602100
click to zoom
3D Models
0026602100 - Molex - 3D model - Header, Vertical - 0026602100
click to zoom

0026602100 Details

  • Manufacturer Part Number:

    0026602100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    RATED CURRENT (POWER): 7A

  • Body Breadth:

    0.25 inch

  • Body Depth:

    0.13 inch

  • Body Length:

    1.554 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

0026602100 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0026602100 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0026602100 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 0026602100 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 0026602100 connector is designed for automated assembly processes. Molex provides guidance on automated assembly and can provide custom solutions for specific manufacturing requirements.
  • The operating temperature range for the 0026602100 connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0026602100 Overview

Use the download button to access the 0026602100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 00266, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
