0039281163 - Molex

Description: Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 16 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

Download 0039281163 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0039281163 - Molex - PCB symbol
click to zoom
PCB Footprints

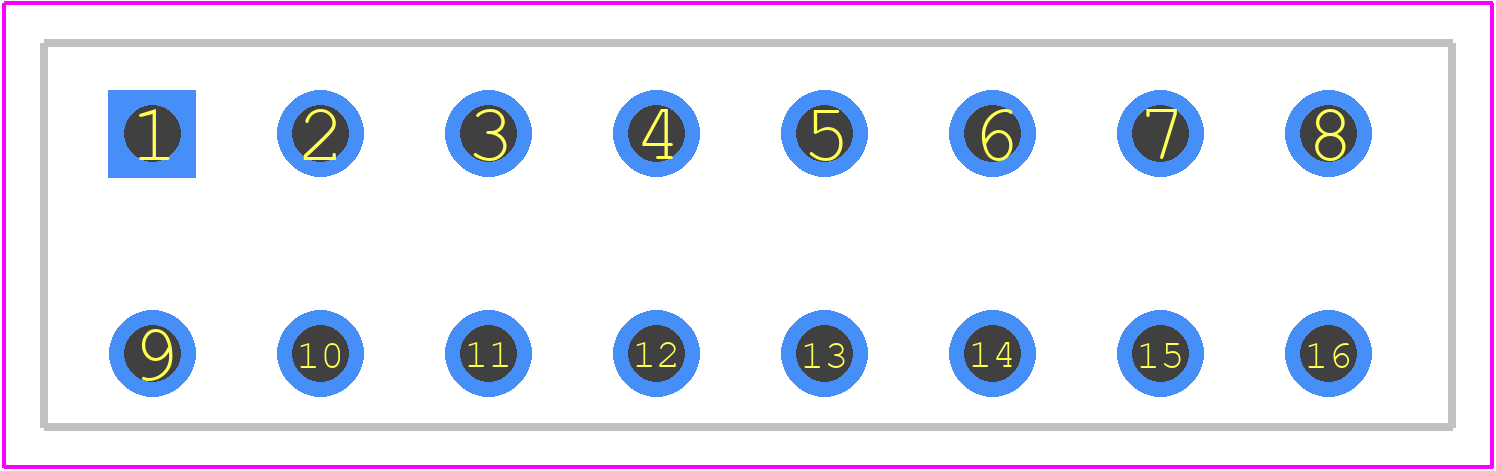

0039281163 - Molex PCB footprint - Other - Other - 0039281163
click to zoom
3D Models
0039281163 - Molex - 3D model - Other - 0039281163
click to zoom

0039281163 Details

  • Manufacturer Part Number:

    0039281163

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

0039281163 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 0039281163 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 0039281163 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0039281163 connector is designed for automated assembly and can be used with pick-and-place machines.
  • The recommended wire size for the 0039281163 connector is 24-20 AWG (0.25-0.5 mm²).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0039281163 Overview

Use the download button to access the 0039281163 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 00392, or try a keyword search, such as Power Connectors
