009155004001016 - Kyocera AVX

Description: 4 Position Spring Battery Contact Connector Surface Mount

Download 009155004001016 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

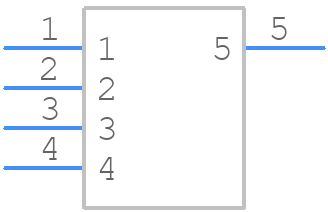

009155004001016 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

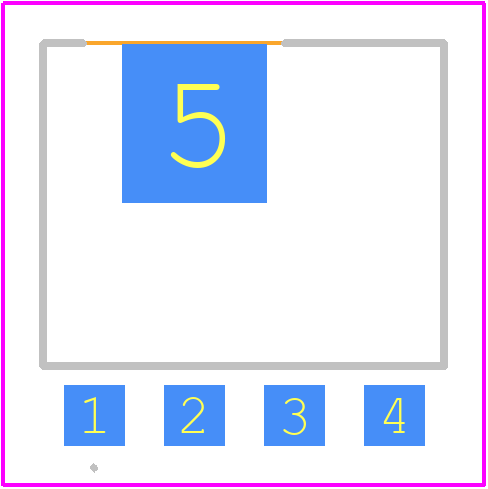

009155004001016 - Kyocera AVX PCB footprint - Other - Other - 009155004001016-2
click to zoom
3D Models
009155004001016 - Kyocera AVX - 3D model - Other - 009155004001016-2
click to zoom

009155004001016 Details

  • Manufacturer Part Number:

    009155004001016

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    GOLD (16)

  • Contact Finish Termination:

    PURE TIN

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE

  • Total Number of Contacts:

    4

009155004001016 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 009155004001016 can be found in the Kyocera AVX Components' application note or by contacting their technical support team.
  • Handle the component by the body, avoid touching the leads or the ceramic capacitor body to prevent damage from electrostatic discharge (ESD). Use an anti-static wrist strap or mat during assembly.
  • The maximum voltage derating for the 009155004001016 is typically 80% of the rated voltage. However, it's recommended to consult with Kyocera AVX Components' technical support team for specific derating guidelines.
  • The 009155004001016 is rated for operation up to 125°C. However, it's recommended to consult with Kyocera AVX Components' technical support team for specific guidance on using the component in high-temperature environments.
  • The ESR of the 009155004001016 is not explicitly stated in the datasheet. However, it's recommended to consult with Kyocera AVX Components' technical support team for specific ESR values or to request a detailed specification sheet.
