031-6121 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

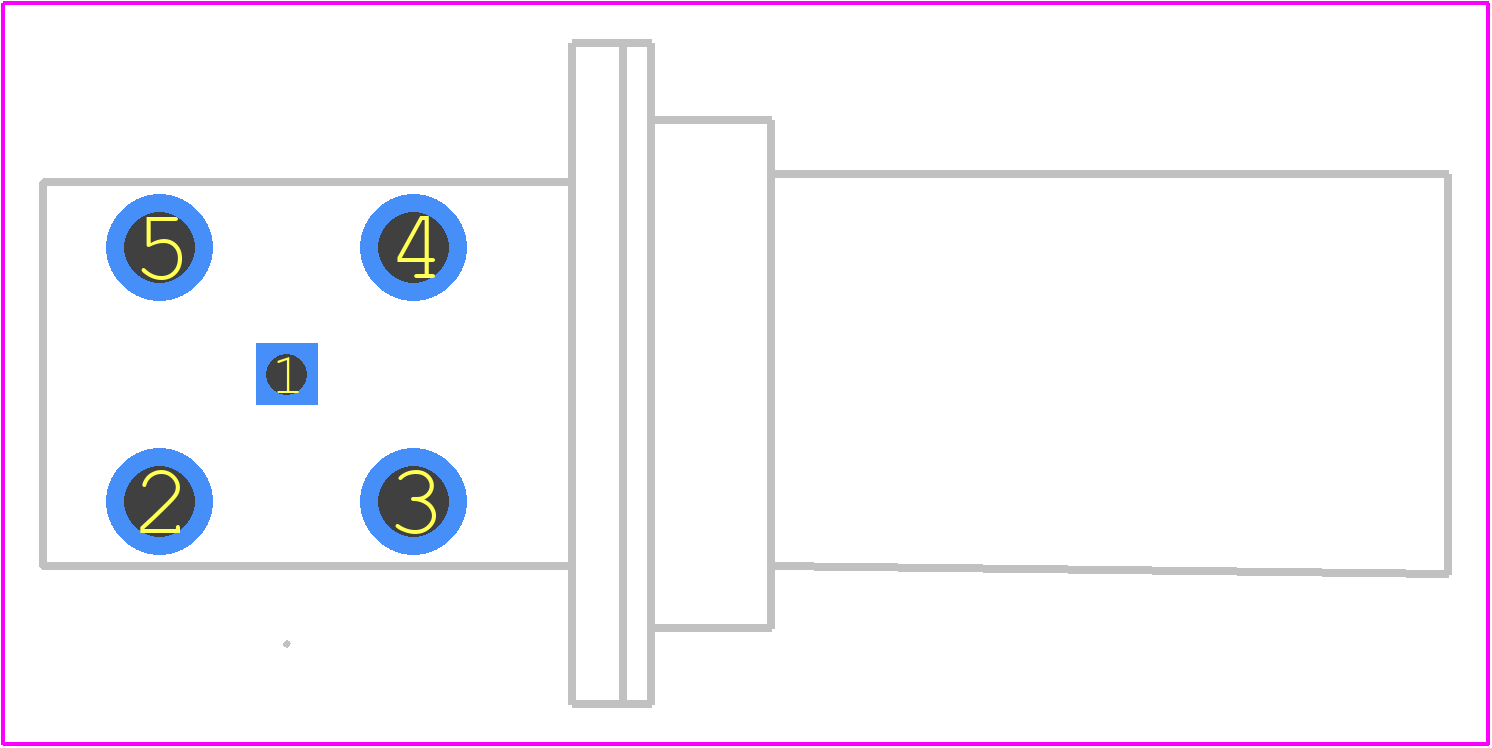

031-6121 - Amphenol PCB footprint - Other - Other - 031-6121-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 031-6121
Part Number 031-6121
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 031-6121-1
Released Date Apr 9, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

031-6121 Details

Manufacturer Part Number:
031-6121
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
YTEOL:
7.55
Body/Shell Style:
JACK
Characteristic Impedance:
50 Ω
Connector Type:
RF BNC CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Coupling Type:
BAYONET
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Operating Frequency-Max:
4 GHz
Option:
GENERAL PURPOSE
Panel Mount:
YES
Termination Type:
SOLDER
VSWR:
1.3

031-6121 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and the manufacturer's recommendations.
Yes, the 031-6121 connector is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to ensure proper mounting and secure fastening to prevent damage or disconnection.
The 031-6121 connector has a IP67 rating, which means it's protected against dust and water immersion up to 1 meter for 30 minutes. However, it's recommended to apply additional protection, such as conformal coating or potting, for extended outdoor use.
While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, this may affect the connector's performance, and it's essential to ensure the wire gauge meets the application's electrical and mechanical requirements.
To ensure proper mating and unmating, follow the manufacturer's guidelines for connector handling and assembly. Make sure the connector is properly aligned, and the mating surfaces are clean and free of debris.

Trust Checks

Community Provided

System Verified

Community Approved

031-6121 Overview

Use the download button to access the 031-6121 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 031-6, or try a keyword search, such as RF BNC Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
