031-71052 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

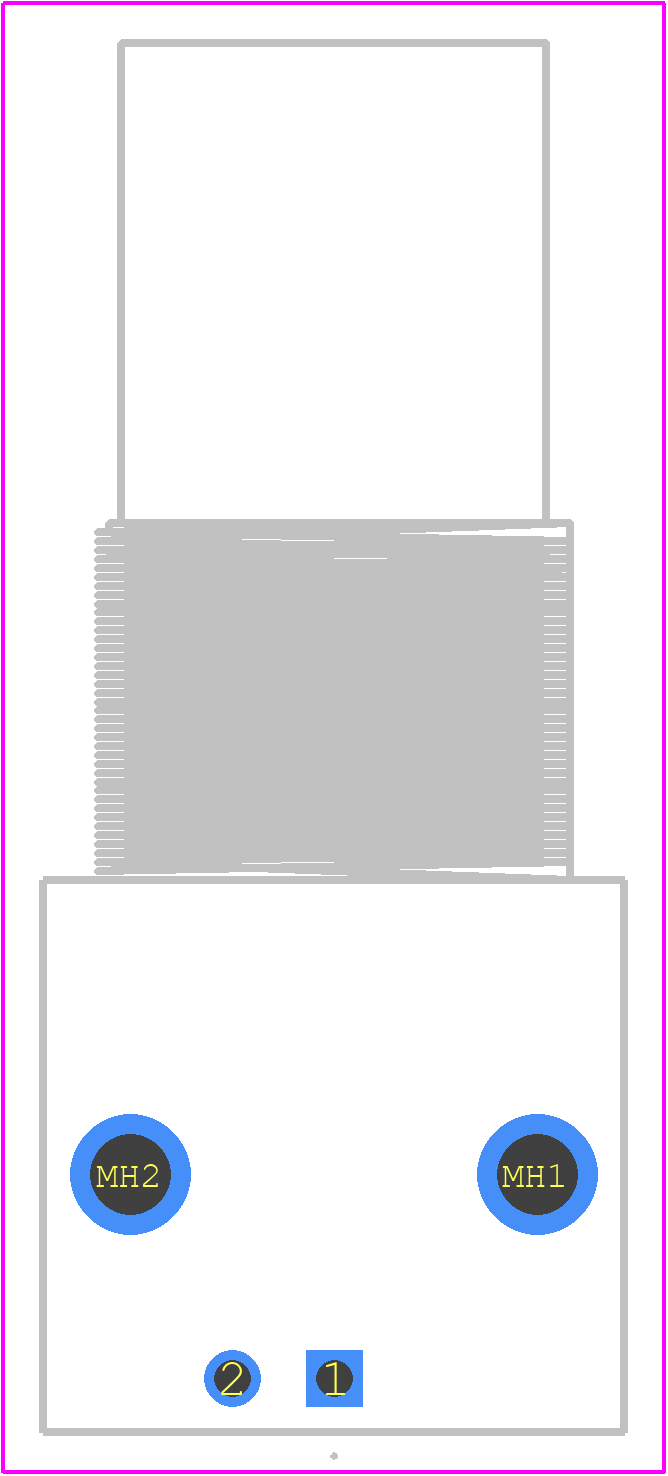

PCB Footprints

031-71052 - Amphenol PCB footprint - Other - Other - 031-71052-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 031-71052
Part Number 031-71052
Manufacturer Amphenol
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - 031-71052-2
Released Date Aug 16, 2023
Last Modified Date Aug 16, 2023 7:24 AM UTC
Pinout / Pin List Click Here (Member Only)

031-71052 Details

Manufacturer Part Number:
031-71052
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
YTEOL:
8
Additional Feature:
LOW PROFILE
Body Breadth:
0.516 inch
Body Depth:
1.366 inch
Body Diameter:
0.505 inch
Body Length:
0.571 inch
Characteristic Impedance:
75 Ω
Connector Type:
RF BNC CONNECTOR
Contact Gender:
FEMALE
Contact Style:
COAX
Coupling Type:
BAYONET
Dielectric Withstanding Voltage:
2121VAC V
Durability:
500 Cycles
Filter Feature:
NO
Insulator Material:
POLYPROPYLENE
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number of Ports:
1
Operating Frequency-Max:
1 GHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
YES
Shell Finish:
NICKEL
Shell Material:
ZINC ALLOY
Terminal Length:
0.162 inch
Termination Type:
SOLDER
Total Number of Contacts:
1

031-71052 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and the manufacturer's recommendations.
Yes, the 031-71052 connector is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to ensure proper mounting and secure fastening to prevent damage or disconnection.
The 031-71052 connector has a IP67 rating, which means it is protected against dust and water immersion up to 1 meter for 30 minutes. However, it's recommended to apply additional protection, such as conformal coating or potting, for extended outdoor use.
While the datasheet specifies a particular wire gauge, it's possible to use a different gauge with some limitations. However, it's crucial to ensure the wire gauge meets the connector's current rating and doesn't compromise the connector's performance or reliability.
To ensure proper mating and unmating, follow the manufacturer's guidelines for connector handling and mating/unmating procedures. It's also essential to ensure the connector is properly aligned and seated during mating, and to avoid excessive force or twisting during unmating.

Trust Checks

Community Provided

System Verified

Community Approved

031-71052 Overview

Use the download button to access the 031-71052 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 031-7, or try a keyword search, such as RF BNC Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
