Part Image

0366420001 - Molex

Description: KK 396 Header, Vertical with Snap-In Pegs, Through Hole, 6 Circuits, No Polarizing Key at Circuit 4, Lead-Free

Download 0366420001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0366420001 - Molex - PCB symbol
click to zoom
PCB Footprints

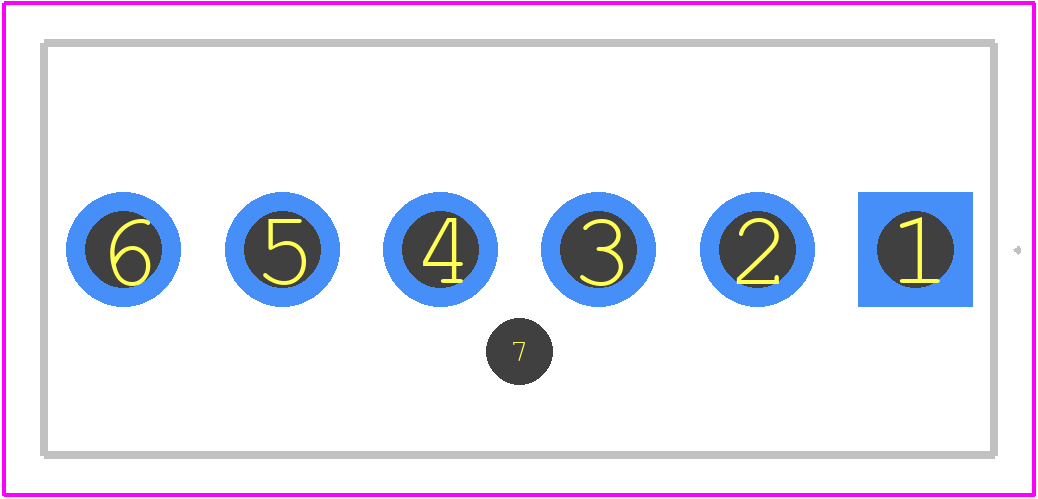

0366420001 - Molex PCB footprint - Other - Other - 0366420001-2
click to zoom
3D Models
0366420001 - Molex - 3D model - Other - 0366420001-2
click to zoom

0366420001 Details

  • Manufacturer Part Number:

    0366420001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    6.6

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

0366420001 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0366420001 connector is to mate the keying feature first, followed by the terminals. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0366420001 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum operating temperature for the 0366420001 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • The 0366420001 connector has a sealed design, but it's not fully waterproof or chemically resistant. If exposure to water or chemicals is a concern, additional protection measures, such as conformal coating or potting, may be necessary.
  • The 0366420001 connector is designed for use with specific wire gauges and types. Using a different wire gauge or type may affect the connector's performance and reliability. Consult the datasheet or contact Molex for guidance on compatible wire options.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0366420001 Overview

Use the download button to access the 0366420001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 03664, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
