0389690002 - Molex

Description: 12.70mm Pitch, Single Row, Tri-Barrier Terminal Strip, without Mounting Ends, Black, Steel Screws, 2 Circuits

Download 0389690002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0389690002 - Molex - PCB symbol
click to zoom

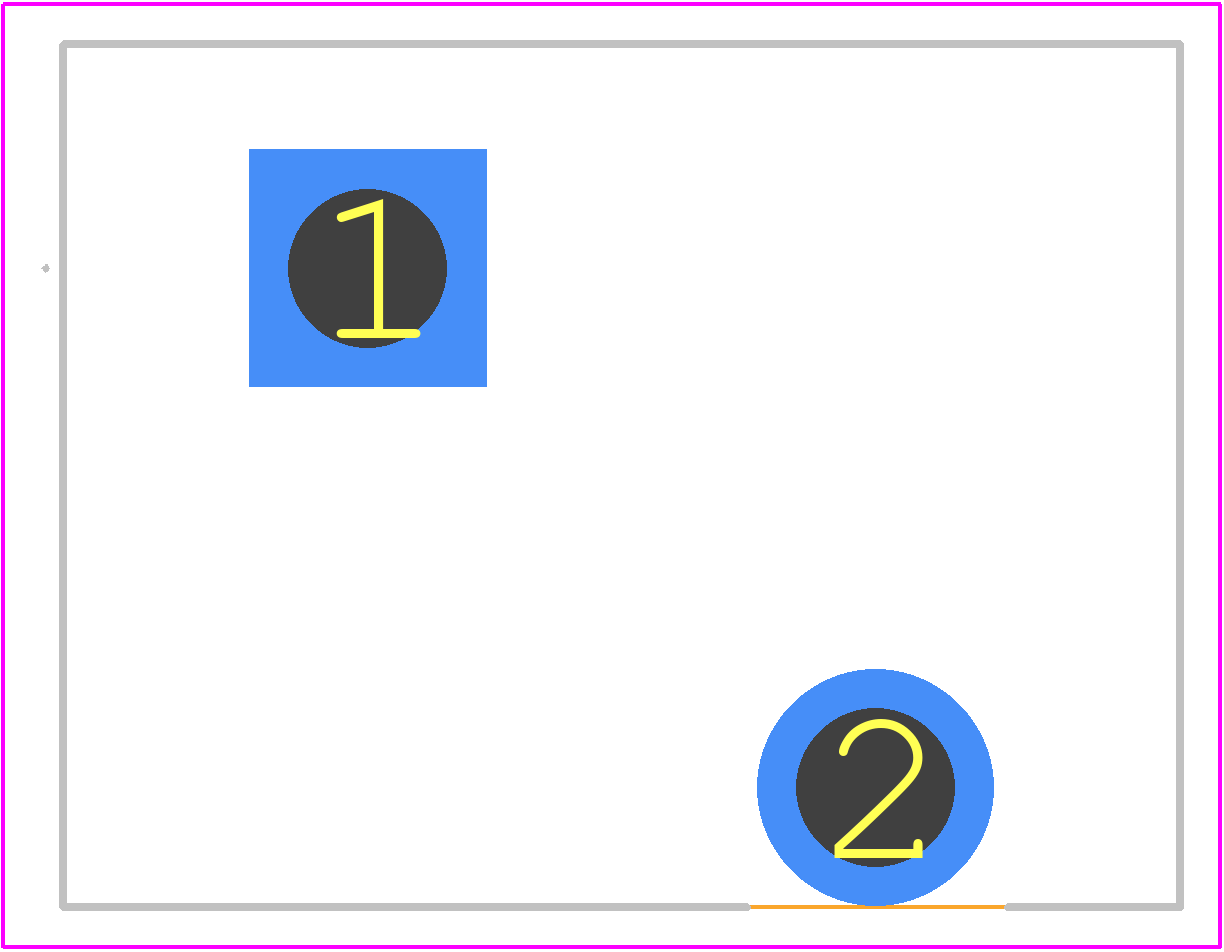

PCB Footprints
0389690002 - Molex PCB footprint - Other - Other - 0389690002-4
click to zoom
3D Models
0389690002 - Molex - 3D model - Other - 0389690002-4
click to zoom

0389690002 Details

  • Manufacturer Part Number:

    0389690002

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    13 Weeks, 3 Days

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0; POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    50 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    8.37 mm2

  • Wire Gauge:

    8 AWG

0389690002 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 0389690002 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 0389690002 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0389690002 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • No, the 0389690002 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a reliable connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0389690002 Overview

Use the download button to access the 0389690002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 03896, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
