0399200302 - Molex

Description: Conn Eurostyle Block 2 POS 15mm Solder ST Thru-Hole 115A/Contact Eurostyle™

Download 0399200302 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0399200302 - Molex - PCB symbol
click to zoom
PCB Footprints

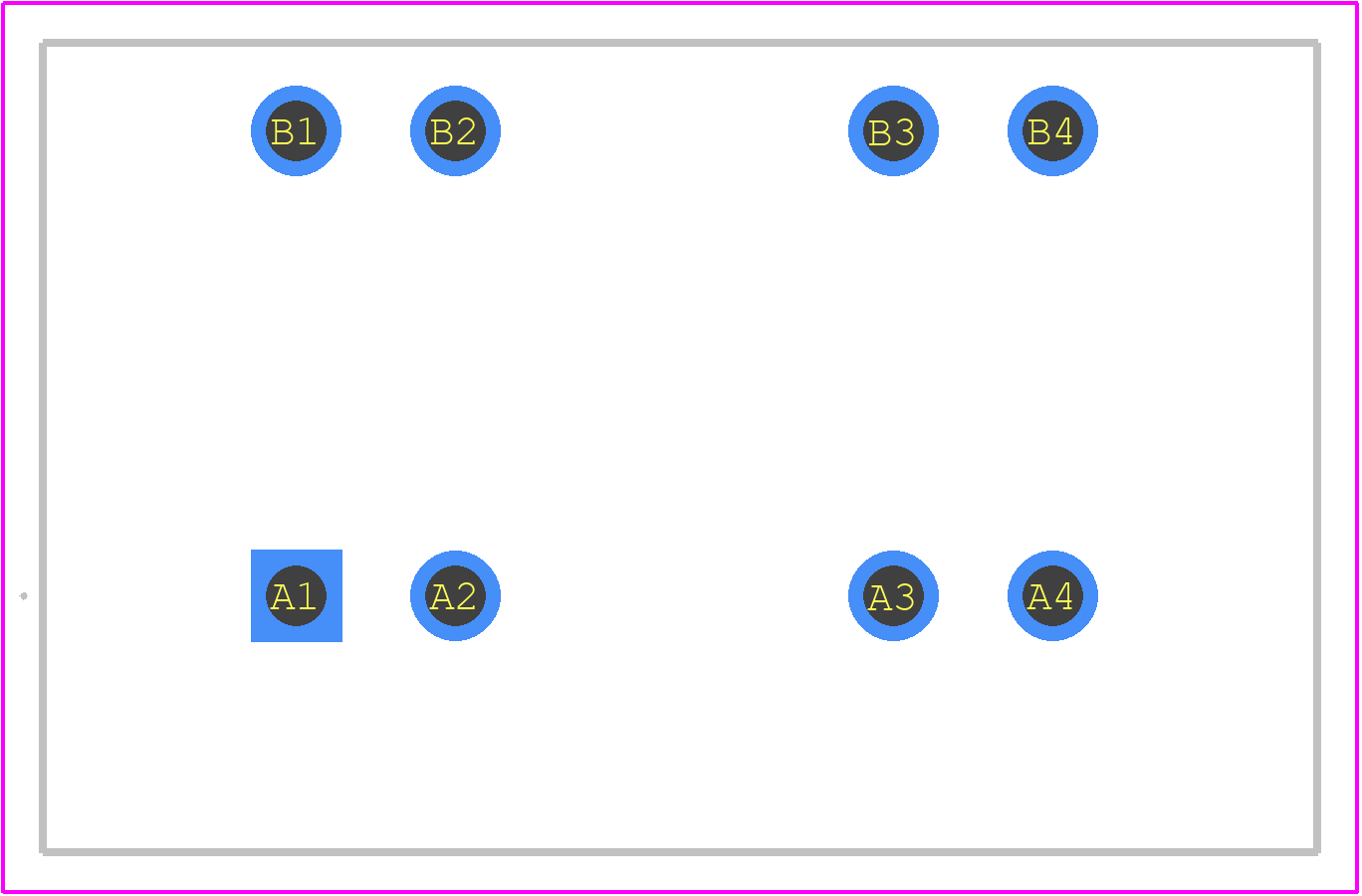

0399200302 - Molex PCB footprint - Other - Other - 0399200302-1
click to zoom
3D Models
0399200302 - Molex - 3D model - Other - 0399200302-1
click to zoom

0399200302 Details

  • Manufacturer Part Number:

    0399200302

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    UL 94V-0, POLYESTER, POLARIZED, SHROUDED

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    11 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    35 mm2

  • Wire Gauge:

    1 AWG

0399200302 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 0399200302 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 0399200302 connector is designed for indoor use and is not intended for outdoor or harsh environmental applications. If you need a connector for outdoor use, consider Molex's weather-sealed or environmentally sealed connectors.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, you should verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult Molex's application notes or contact their technical support for guidance.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow Molex's recommended PCB layout guidelines, including keeping the PCB thickness within 1.57 mm (0.062 in) and maintaining a minimum clearance of 1.27 mm (0.05 in) around the connector.
