The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the 399200302 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
Yes, the 399200302 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
The operating temperature range for the 399200302 connector is -40°C to 105°C (-40°F to 221°F).
The 399200302 connector has a moisture-sealing rating of IP67, making it suitable for use in humid or wet environments, but it's not designed for continuous immersion in water.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
39920-0302 Overview

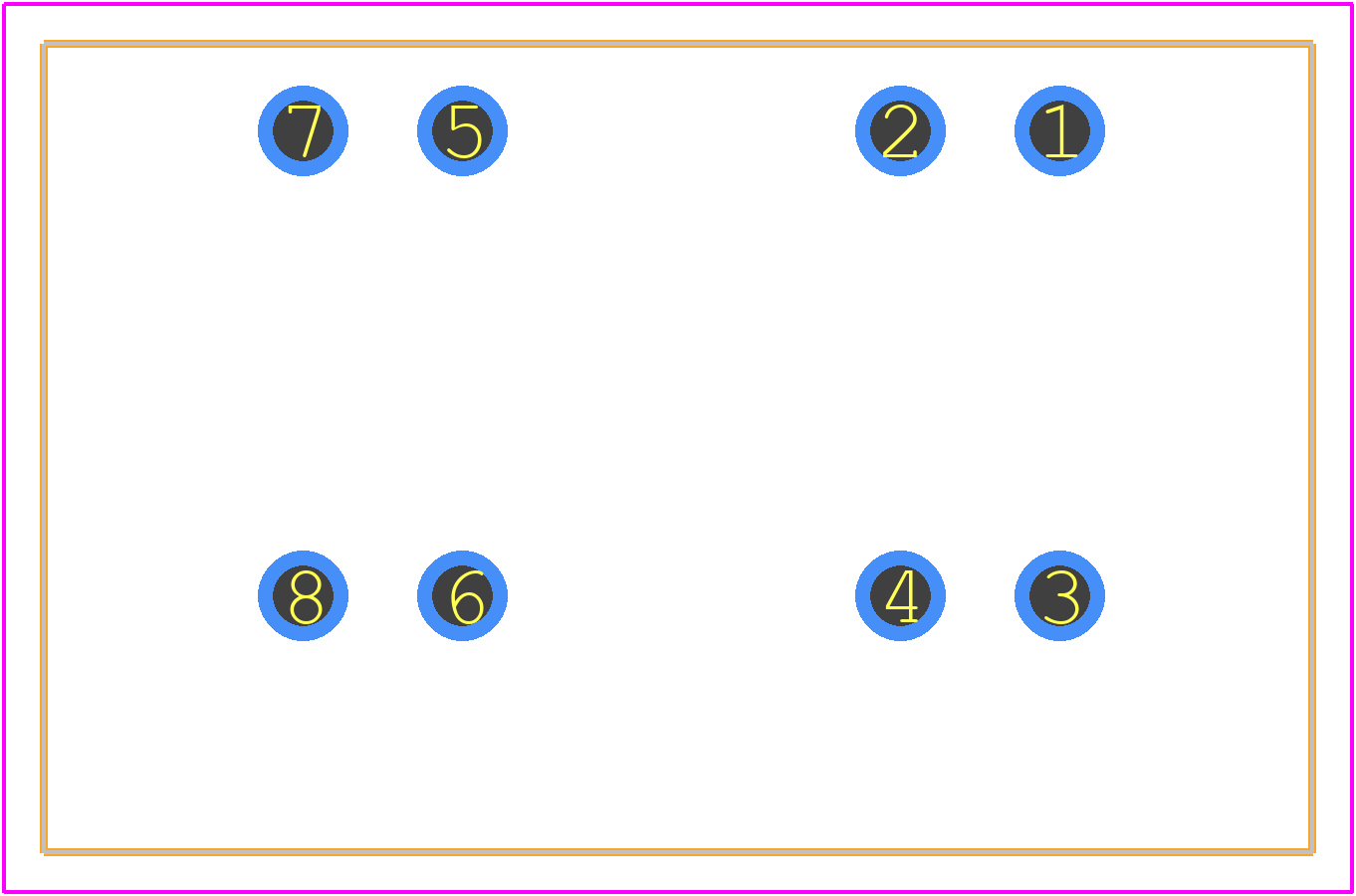

Use the download button to access the 39920-0302 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39920,
or try a keyword search, such as Terminals and Terminal Blocks
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
