- Part Number 0428781003
- Manufacturer Molex
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - 0428781003-1
- Released Date Apr 9, 2020
- Last Modified Date Oct 6, 2025 12:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
0428781003 Details
-
Manufacturer Part Number:
0428781003
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Molex
-
Connector Type:
RJ CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Tin (Sn)
0428781003 Frequently Asked Questions (FAQs)
-
The recommended mating sequence for the 0428781003 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
-
Yes, the 0428781003 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
-
The maximum operating temperature for the 0428781003 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
-
Yes, the 0428781003 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
-
The recommended torque for the screw locks on the 0428781003 connector is 0.5-1.5 Nm (0.37-1.06 lb-in). Over-torquing may damage the connector or the PCB.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
0428781003 Overview

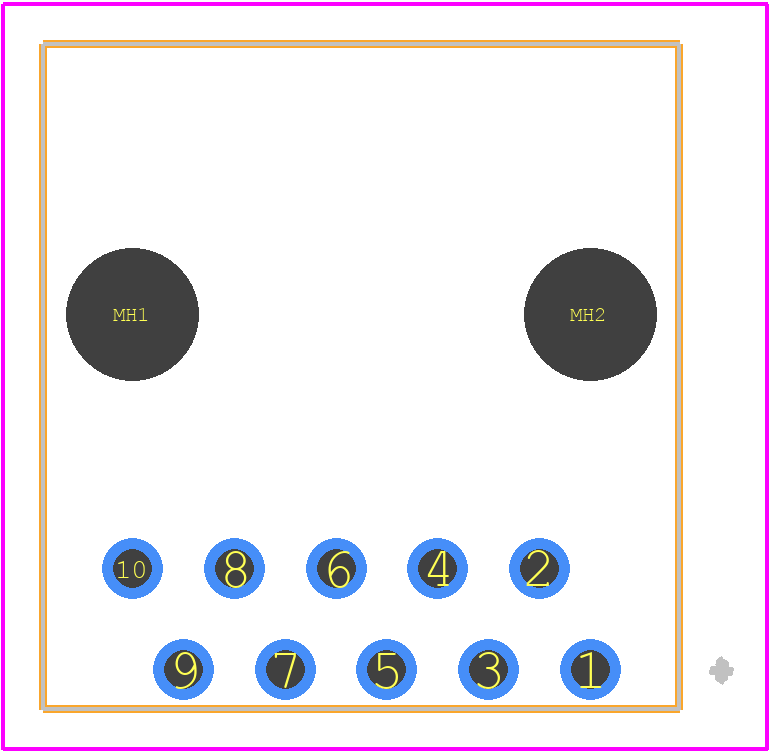

Use the download button to access the 0428781003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04287,
or try a keyword search, such as Telecom and Datacom Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
