0430451207 - Molex

Description: Microfit Dual Row Vertical Thru Hole Header, 12 Positions

Download 0430451207 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0430451207 - Molex - PCB symbol
click to zoom
PCB Footprints

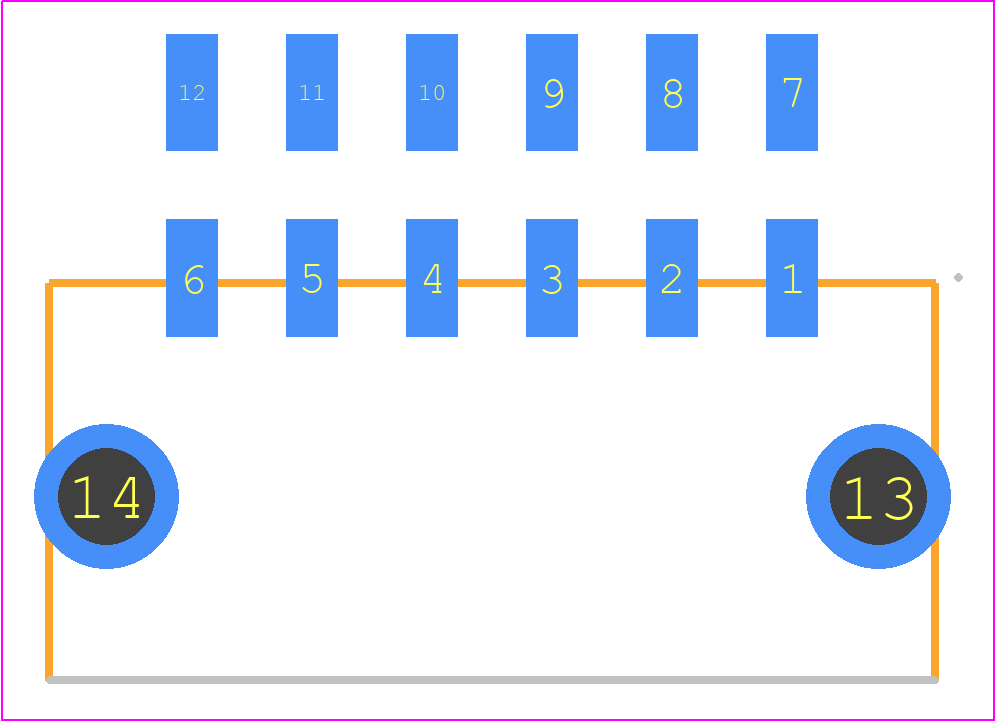

0430451207 - Molex PCB footprint - Other - Other - 0430451207
click to zoom
3D Models
0430451207 - Molex - 3D model - Other - 0430451207
click to zoom

0430451207 Details

  • Manufacturer Part Number:

    0430451207

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8.4

  • Additional Feature:

    RATED CURRENT(POWER): 8.5A

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.606 inch

  • Body Length:

    0.853 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

0430451207 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 0430451207 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 0430451207 connector has a rating of IP67, which means it can withstand temporary immersion in water and is protected against dust and other environmental factors. However, it's essential to follow proper sealing and installation procedures to maintain the connector's environmental rating.
  • The 0430451207 connector is designed to accommodate wire sizes between 24 AWG and 18 AWG. Using wire sizes outside this range may compromise the connector's performance and reliability.
  • The 0430451207 connector is rated for a maximum current of 3A per contact. Exceeding this current rating may cause overheating, damage, or failure of the connector. It's essential to ensure that the connector is used within its specified current rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0430451207 Overview

Use the download button to access the 0430451207 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04304, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
