0430451214 - Molex

Description: Microfit Dual Row Vertical Thru Hole Header, 12 Positions

Download 0430451214 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0430451214 - Molex - PCB symbol
click to zoom
PCB Footprints

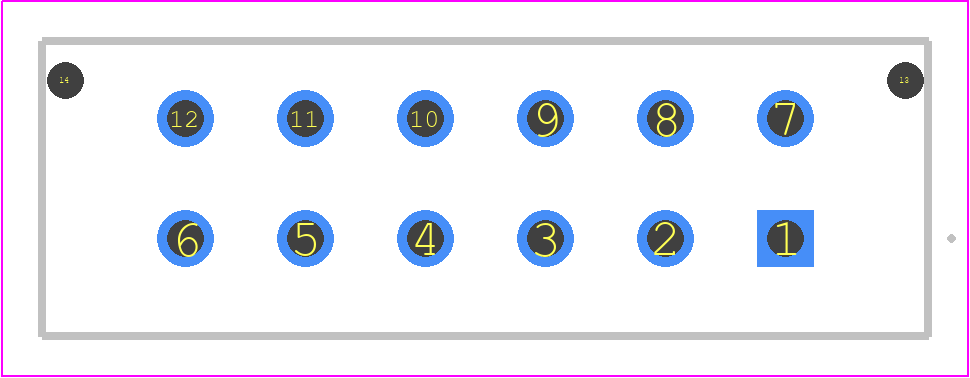

0430451214 - Molex PCB footprint - Other - Other - 0430451214
click to zoom
3D Models
0430451214 - Molex - 3D model - Other - 0430451214
click to zoom

0430451214 Details

  • Manufacturer Part Number:

    0430451214

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, Mexico, Puerto Rico, South Korea, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 8.5A

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    0.853 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

0430451214 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 0430451214 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the 0430451214 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0430451214 connector is designed to be resistant to moisture and corrosion, making it suitable for use in harsh environments. However, it's essential to follow proper installation and sealing procedures to ensure the connector's integrity.
  • While the 0430451214 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, this may affect the connector's performance and reliability. It's recommended to consult with a Molex representative or a qualified engineer to determine the suitability of the connector for your specific application.
