0430451807 - Molex

Description: Microfit Dual Row Vertical Thru Hole Header, 18 Positions

Download 0430451807 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0430451807 - Molex - PCB symbol
click to zoom
PCB Footprints

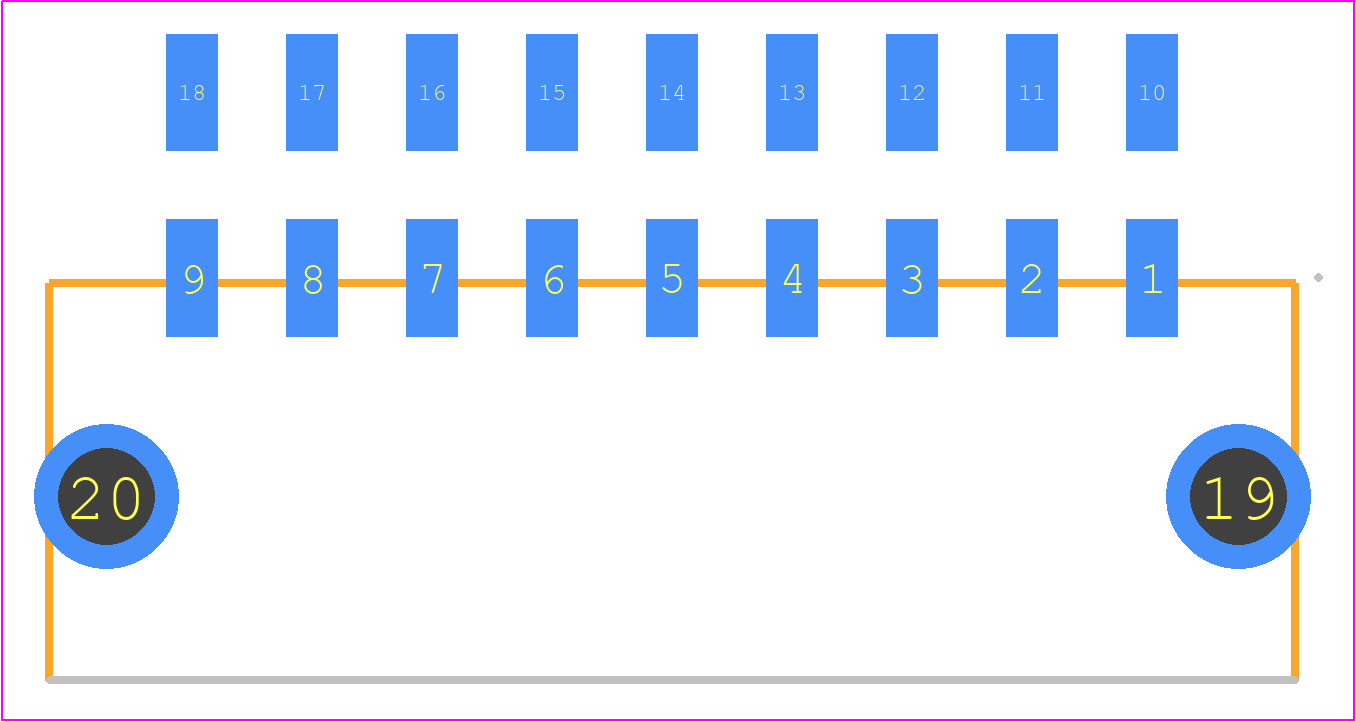

0430451807 - Molex PCB footprint - Other - Other - 0430451807
click to zoom
3D Models
0430451807 - Molex - 3D model - Other - 0430451807
click to zoom

0430451807 Details

  • Manufacturer Part Number:

    0430451807

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8.4

  • Additional Feature:

    RATED CURRENT(POWER): 8.5A

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.606 inch

  • Body Length:

    1.207 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    18

  • UL Flammability Code:

    94V-0

0430451807 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0430451807 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0430451807 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 0430451807 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • While it's possible to use a different wire gauge, it's not recommended. Using a wire gauge that's not specified in the datasheet may affect the connector's performance, reliability, and durability. Consult with Molex or a qualified engineer for guidance.
  • To ensure proper EMI shielding, make sure to follow Molex's guidelines for shielding and grounding. This includes using the correct shielding materials, ensuring proper contact between the shield and the connector, and following proper cable dressing and routing practices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0430451807 Overview

Use the download button to access the 0430451807 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04304, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
