0430452213 - Molex

Description: Microfit Dual Row Vertical Thru Hole Header, 22 Positions

Download 0430452213 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

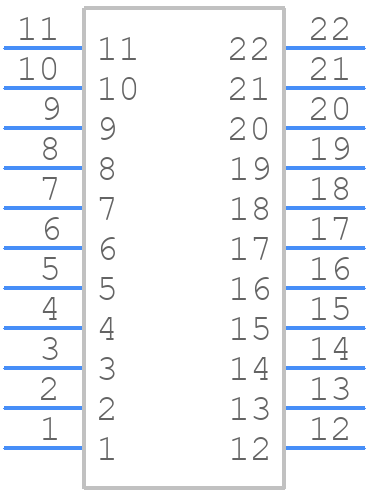

Symbol
0430452213 - Molex - PCB symbol
click to zoom

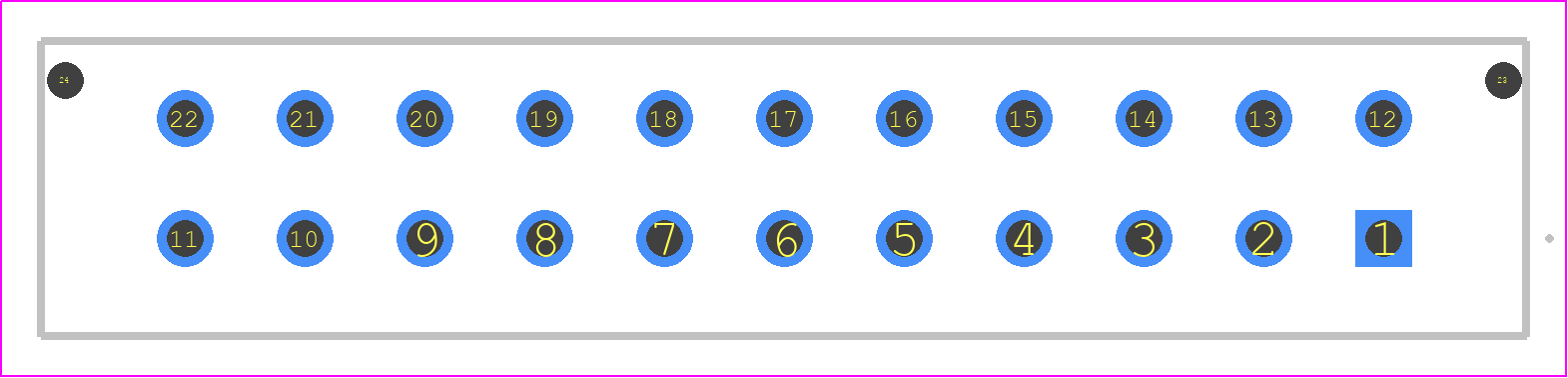

PCB Footprints
0430452213 - Molex PCB footprint - Other - Other - 0430452213
click to zoom
3D Models
0430452213 - Molex - 3D model - Other - 0430452213
click to zoom

0430452213 Details

  • Manufacturer Part Number:

    0430452213

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7.88

  • Additional Feature:

    RATED CURRENT(POWER): 8.5A

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    1.443 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    22

  • UL Flammability Code:

    94V-0

0430452213 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 0430452213 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 0430452213 connector has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 0430452213 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the 0430452213 connector is designed for use with AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0430452213 Overview

Use the download button to access the 0430452213 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04304, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
