0432236107 - Molex

Description: Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded Cat4 Through Hole 50.0µin (1.27µm) -40°C ~ 85°C

Download 0432236107 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

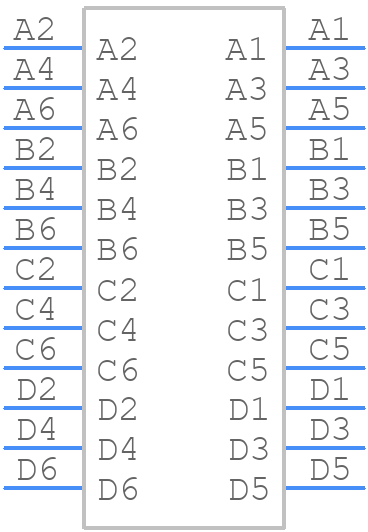

0432236107 - Molex - PCB symbol
click to zoom
PCB Footprints

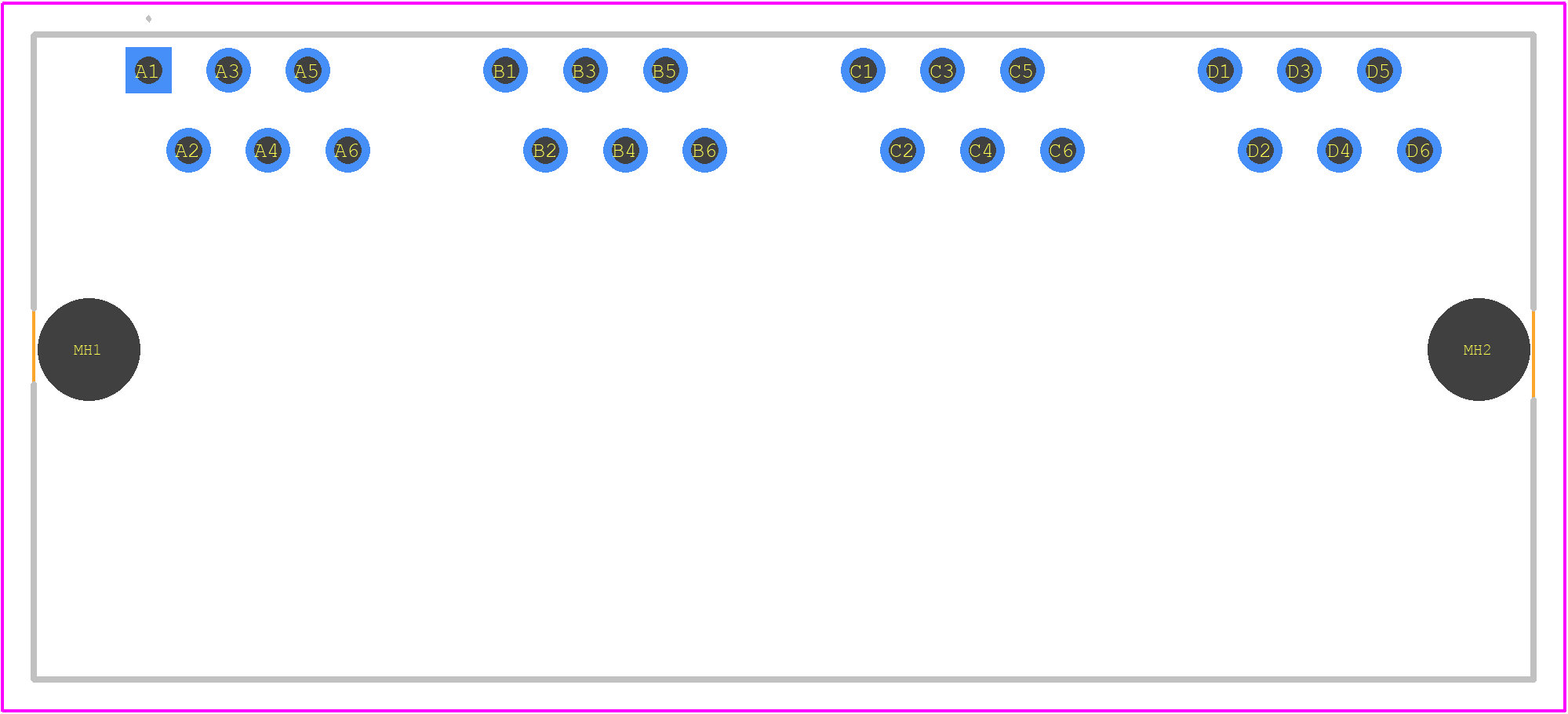

0432236107 - Molex PCB footprint - Other - Other - 0432236107-1
click to zoom
3D Models
0432236107 - Molex - 3D model - Other - 0432236107-1
click to zoom

0432236107 Details

  • Manufacturer Part Number:

    0432236107

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, South Korea, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8.1

  • Additional Feature:

    6 PORTS 6 CONTACTS EACH, LOW PROFILE

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

0432236107 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0432236107 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0432236107 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 0432236107 connector is typically 3-5 times the diameter of the cable. However, it's recommended to consult the specific cable manufacturer's guidelines for the recommended bend radius.
  • The 0432236107 connector is rated for operating temperatures up to 105°C. However, it's essential to consider the temperature rating of the cable and other components in the system to ensure reliable operation.
  • The recommended torque for the screw locks on the 0432236107 connector is typically between 0.5-1.5 Nm. However, it's recommended to consult the specific datasheet or manufacturer's guidelines for the recommended torque value.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0432236107 Overview

Use the download button to access the 0432236107 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04322, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
