0436500605 - Molex

Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 6 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black

Download 0436500605 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

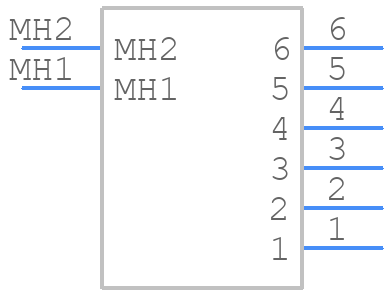

Symbol
0436500605 - Molex - PCB symbol
click to zoom

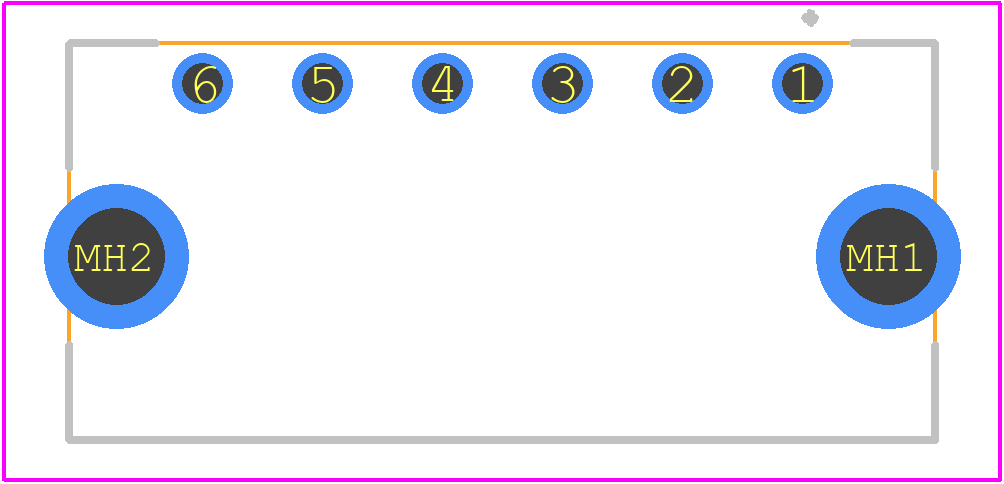

PCB Footprints
0436500605 - Molex PCB footprint - Other - Other - 0436500605-4
click to zoom
3D Models
0436500605 - Molex - 3D model - Other - 0436500605-4
click to zoom

0436500605 Details

  • Manufacturer Part Number:

    0436500605

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    MICRO-FIT; SHROUDED; POLARIZED

  • Body Breadth:

    0.219 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    0.852 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

0436500605 Frequently Asked Questions (FAQs)

  • The mating force required for the 0436500605 connector is typically around 2-3 kgf (kilograms-force) per contact, but this can vary depending on the specific application and environment. It's recommended to consult with Molex or a qualified engineer to determine the specific mating force requirements for your specific use case.
  • The 0436500605 connector is rated for operating temperatures up to 150°C (302°F), but it's essential to consider the specific application and environmental conditions. If you're planning to use the connector in an extreme temperature environment, consult with Molex or a qualified engineer to ensure the connector meets the required specifications.
  • The insulation resistance of the 0436500605 connector is typically greater than 100 MΩ (megaohms) at 25°C (77°F) and 50°C (158°F), but this can vary depending on the specific application and environmental conditions. Consult the datasheet or contact Molex for more information.
  • The 0436500605 connector is designed to withstand moderate vibration, but it's essential to consider the specific application and environmental conditions. If you're planning to use the connector in an extreme vibration environment, consult with Molex or a qualified engineer to ensure the connector meets the required specifications.
  • The 0436500605 connector has an ESD rating of 1 kV (kilovolts) to 3 kV, depending on the specific application and environmental conditions. Consult the datasheet or contact Molex for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0436500605 Overview

Use the download button to access the 0436500605 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04365, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
