051520-0025 footprint, schematic symbol and 3D model by ITT CANNON

Symbol

click to zoom

PCB Footprints

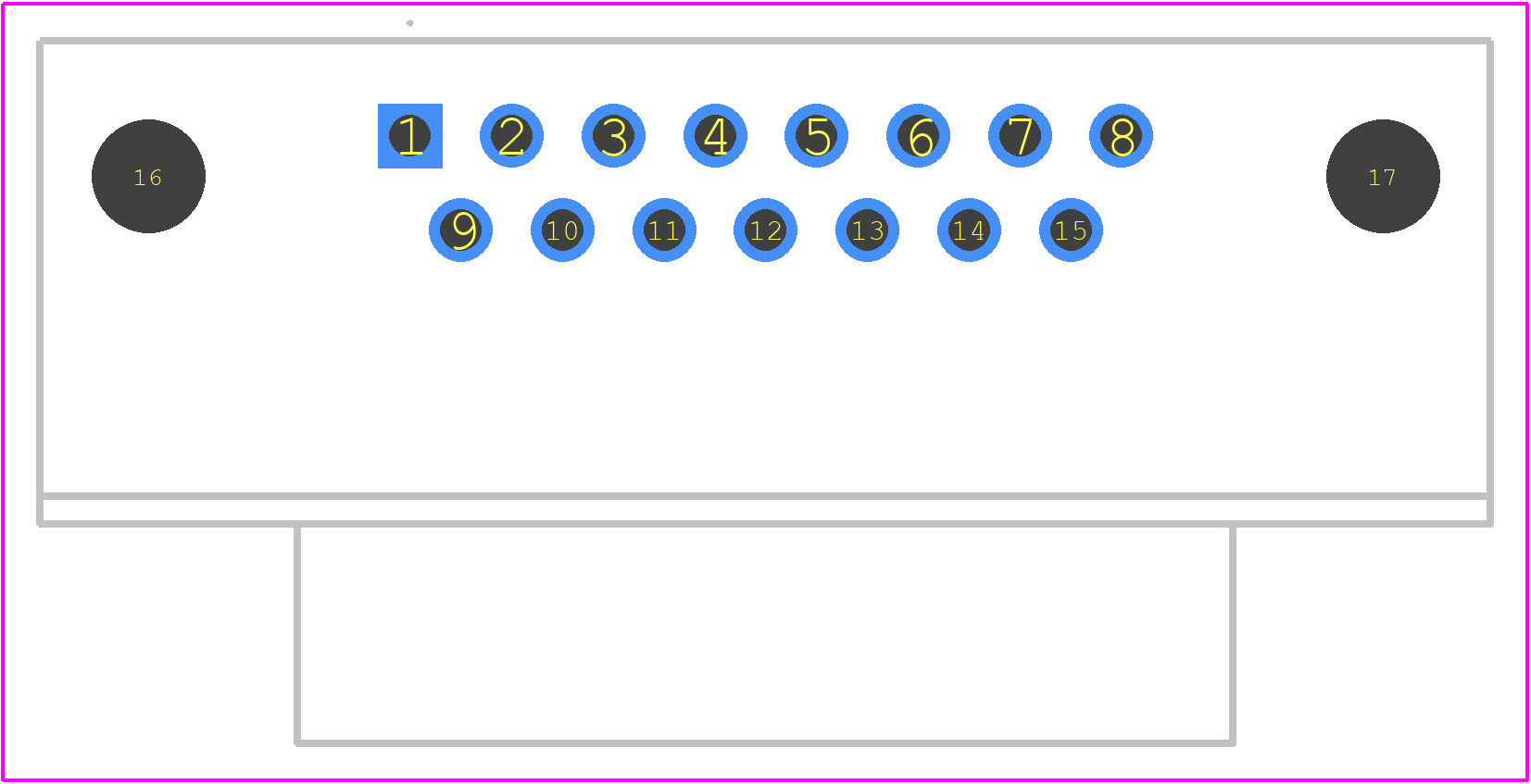

051520-0025 - ITT CANNON PCB footprint - Other - Other - 051520-0025-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 051520-0025
Part Number 051520-0025
Manufacturer ITT CANNON
Pin Count 15
Part Category Connector
Package Category Other
Footprint Name Other - 051520-0025-1
Released Date Jun 14, 2025
Last Modified Date Dec 4, 2025 12:47 AM UTC
Pinout / Pin List Click Here (Member Only)

051520-0025 Details

Manufacturer Part Number:
051520-0025
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
ITT Interconnect Solutions
YTEOL:
8
Additional Feature:
STANDARD: MIL-C-24308, PANEL MOUNTABLE
Body Breadth:
0.494 inch
Body Depth:
0.395 inch
Body Length:
1.541 inch
Body/Shell Style:
PLUG
Cable Types:
RG-178/U
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Gender:
MALE
Contact Pattern:
STAGGERED
Contact Resistance:
7.5 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1000VAC V
Empty Shell:
NO
Filter Feature:
NO
Insulator Color:
GREEN
Insulator Material:
GLASS FILLED DIALLYL PHTHALATE
Mating Contact Pitch:
0.109 inch
Mating Contact Row Spacing:
0.112 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
HOLE .112-.124
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.8448 mm
Plating Thickness:
50u inch
Rated Current (Signal):
7.5 A
Reference Standard:
UL
Shell Finish:
CHROMATE
Shell Material:
STEEL
Shell Size:
2/A
Terminal Length:
0.158 inch
Terminal Pitch:
2.7432 mm
Termination Type:
SOLDER
Total Number of Contacts:
15
UL Flammability Code:
94V-0

051520-0025 Frequently Asked Questions (FAQs)

The recommended torque value for mating and unmating the 051520-0025 connector is typically between 0.5 to 1.5 Nm (7 to 13 in-lbs), but it's recommended to consult the specific application requirements and ITT Interconnect Solutions' guidelines for precise torque values.
Yes, the 051520-0025 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 20 G's (196 m/s²) according to ITT Interconnect Solutions' specifications.
The 051520-0025 connector is designed to operate in a wide range of temperatures (-55°C to 125°C) and humidity levels, making it suitable for harsh environmental conditions. However, it's essential to consult the datasheet and ITT Interconnect Solutions' guidelines for specific environmental requirements.
The maximum current rating for the 051520-0025 connector is typically up to 5 A per contact, but it's recommended to consult the datasheet and ITT Interconnect Solutions' guidelines for specific current rating requirements.
The 051520-0025 connector is designed to be compatible with other ITT Interconnect Solutions' products, but compatibility with connectors from other manufacturers may vary. It's recommended to consult ITT Interconnect Solutions' guidelines and perform compatibility testing before using the connector with other products.

Trust Checks

Community Provided

System Verified

Community Approved

051520-0025 Overview

Use the download button to access the 051520-0025 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 05152, or try a keyword search, such as D Type Connectors
