0522071433 - Molex

Description: Conn FFC/FPC Connector SKT 14 POS 1mm Solder RA SMD Easy-On™ T/R

Download 0522071433 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

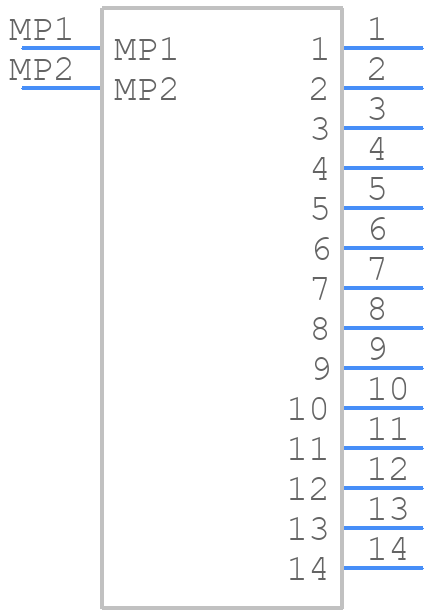

0522071433 - Molex - PCB symbol
click to zoom
PCB Footprints
0522071433 - Molex PCB footprint - Other - Other - 0522071433-2
click to zoom
3D Models
0522071433 - Molex - 3D model - Other - 0522071433-2
click to zoom

0522071433 Details

  • Manufacturer Part Number:

    0522071433

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    EASY-ON, POLARIZED

  • Body Breadth:

    0.106 inch

  • Body Depth:

    0.299 inch

  • Body Length:

    0.799 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

0522071433 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0522071433 connector is to mate the keying feature first, followed by the connector body, and finally the latches. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to clean the contacts before mating, apply a suitable contact lubricant, and ensure proper torque on the screws. Also, avoid over-tightening or under-tightening the screws, as this can lead to connector damage.
  • The 0522071433 connector is rated for operation up to 125°C (257°F). However, it's essential to note that the operating temperature may be affected by the specific application, cable, and environmental conditions.
  • Yes, the 0522071433 connector is designed to withstand moderate vibration. However, it's crucial to ensure proper mounting and securing of the connector to prevent damage or disconnection. Consult the datasheet and Molex's application notes for specific guidance.
  • Yes, it's essential to follow Molex's recommended PCB layout guidelines for the 0522071433 connector. This includes ensuring proper clearance, pad size, and spacing to prevent electrical shorts and ensure reliable connections.
