52207-1460 - Molex

Description: Receptacle 1.0mm FFC/FPC SMT,r/a,ZIF,14w Molex FFC/FPC SMT Series 1mm Pitch 14 Way 1 Row Right Angle SMT Female FPC Connector, Gold over Nickel Plated Contacts

Download 52207-1460 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

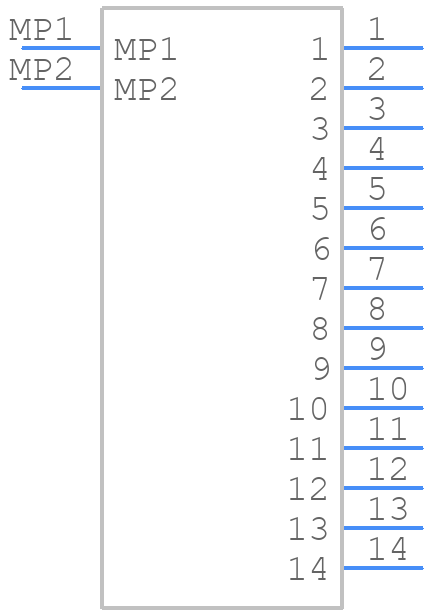

Symbol
52207-1460 - Molex - PCB symbol
click to zoom
PCB Footprints
52207-1460 - Molex PCB footprint - Other - Other - 52207-1460-1
click to zoom
3D Models
52207-1460 - Molex - 3D model - Other - 52207-1460-1
click to zoom

52207-1460 Details

  • Manufacturer Part Number:

    52207-1460

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    EASY-ON, POLARIZED

  • Body Breadth:

    0.106 inch

  • Body Depth:

    0.299 inch

  • Body Length:

    0.799 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

52207-1460 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 522071460 connector is 50 cycles minimum, but it's recommended to consult the specific application requirements and environmental conditions to determine the suitable mating cycle.
  • While the 522071460 connector is designed to withstand some vibration, it's essential to evaluate the specific vibration requirements of your application. Molex recommends consulting their application notes and performing testing to ensure the connector meets the required vibration standards.
  • The 522071460 connector has an operating temperature range of -40°C to 105°C. While it can withstand high temperatures, it's crucial to consider the specific temperature requirements of your application and ensure the connector meets those demands.
  • The recommended torque for the 522071460 connector varies depending on the specific application and mating requirements. It's recommended to refer to the Molex application notes and consult with their technical support team to determine the suitable torque for your application.
  • The 522071460 connector is designed for automated assembly processes, but it's essential to evaluate the specific requirements of your assembly process and ensure the connector meets those demands. Consult with Molex's technical support team to determine the suitability of this connector for your automated assembly process.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

52207-1460 Overview

Use the download button to access the 52207-1460 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52207, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
