0559172010 - Molex

0559172010 Details

• Manufacturer Part Number:

  0559172010

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan, Mainland China, Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• YTEOL:

  8

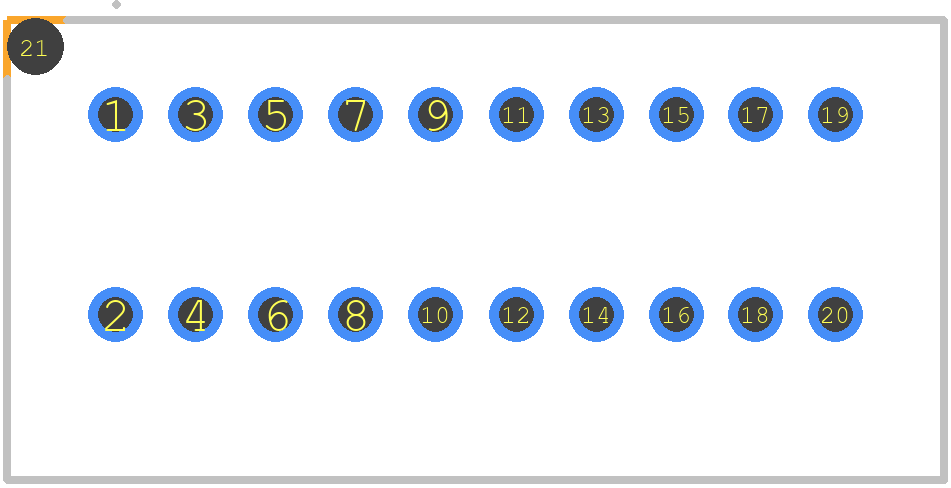

• Board Mounting Option:

  HOLE 0.051

• Body Breadth:

  0.453 inch

• Body Depth:

  0.384 inch

• Body Length:

  0.921 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  58 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYESTER

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.197 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5 mm

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.126 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  4.9 N
