0606040.UXTHP - LITTELFUSE

Description: Cartridge Fuses 40A 500V

Download 0606040.UXTHP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

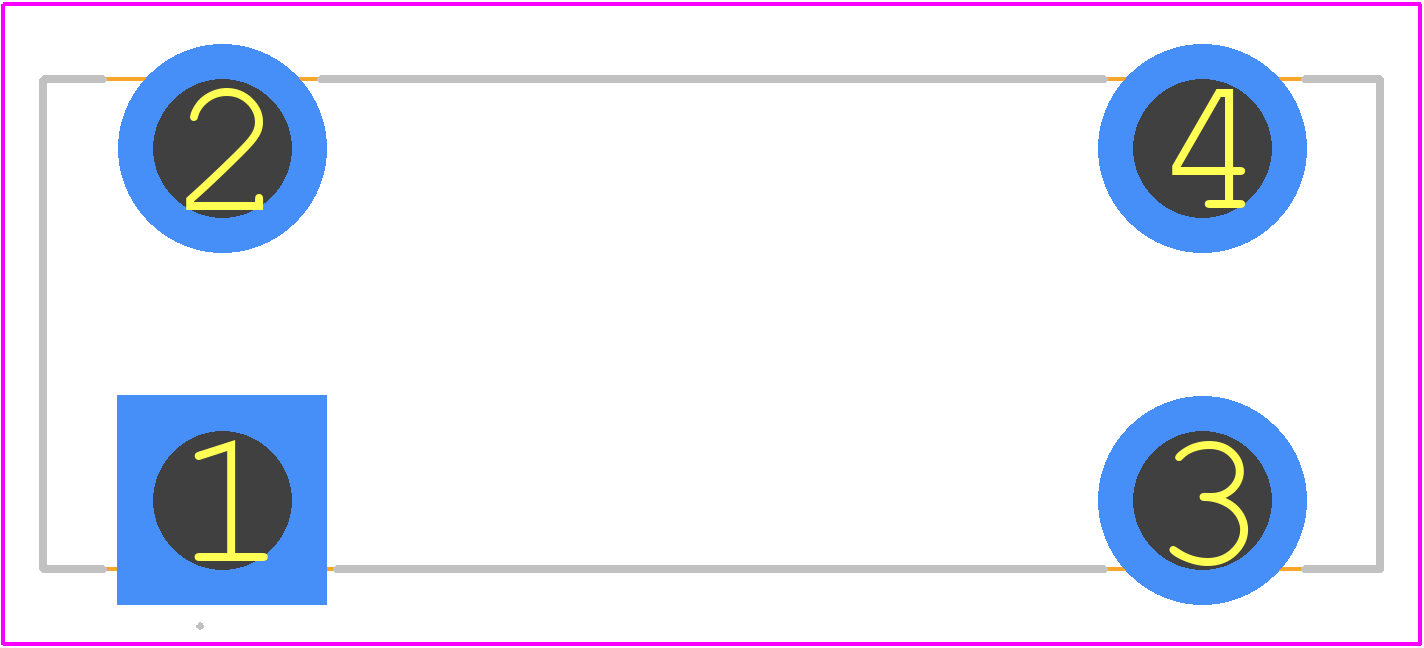

0606040.UXTHP - LITTELFUSE PCB footprint - Other - Other - 0606040.UXTHP-2
click to zoom
3D Models
0606040.UXTHP - LITTELFUSE  - 3D model - Other - 0606040.UXTHP-2
click to zoom

0606040.UXTHP Details

  • Manufacturer Part Number:

    0606040.UXTHP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.18

  • Body Height:

    33.4 mm

  • Body Length or Diameter:

    12.25 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • Fuse Size:

    10x32mm

  • JESD-609 Code:

    e3

  • Joule Integral-Nom:

    2500 J

  • Mounting Feature:

    THROUGH HOLE

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TRAY

  • Rated Breaking Capacity:

    2000 A

  • Rated Current:

    40 A

  • Rated Voltage(AC):

    500 V

  • Reference Standard:

    CUL; TUV; UL

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    TAB/BLADE

  • Trip Time or Delay:

    120 s

0606040.UXTHP Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the 0606040.UXTHP is -40°C to 125°C.
  • Yes, the 0606040.UXTHP is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • Yes, the 0606040.UXTHP is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure optimal performance.
  • The typical response time for the 0606040.UXTHP is around 1-2 microseconds, but this may vary depending on the specific application and operating conditions.
  • Yes, the 0606040.UXTHP is designed to operate in high-temperature environments up to 150°C, but it's recommended to derate the device according to the manufacturer's guidelines to ensure optimal performance and reliability.
