07111000024 - HARTING

Description: Mini-Coax straight module, 8pin, press-in, 1.25SU - phased out

Download 07111000024 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

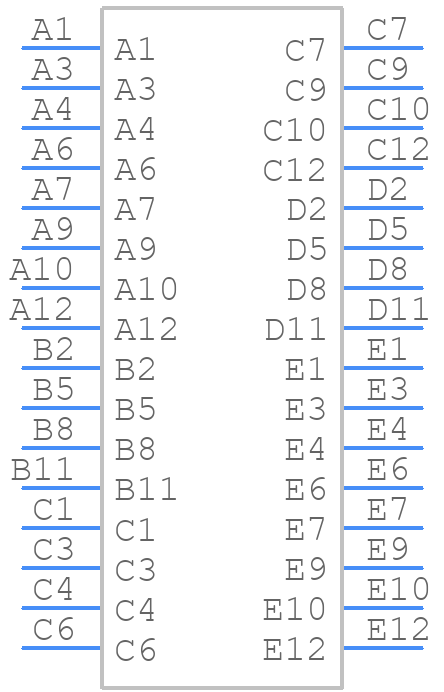

07111000024 - HARTING - PCB symbol
click to zoom
PCB Footprints

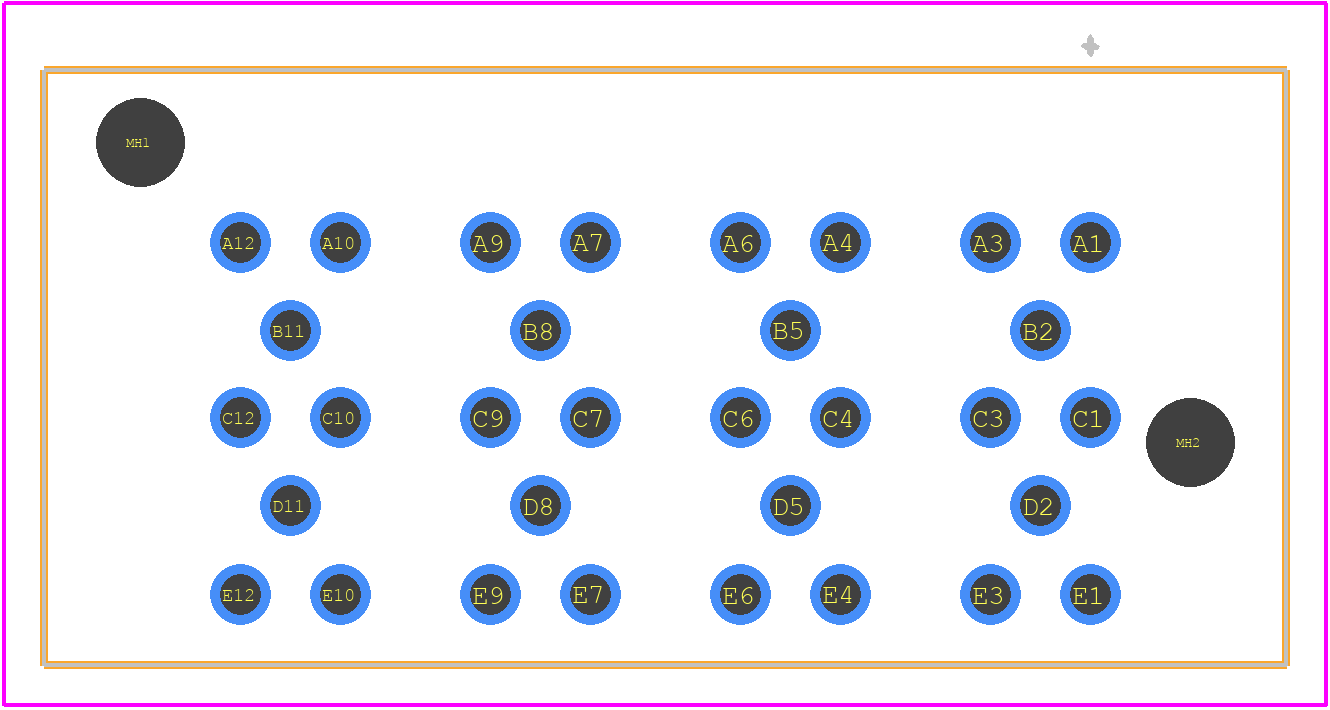

07111000024 - HARTING PCB footprint - Other - Other - 07111000024-1
click to zoom
3D Models
07111000024 - HARTING - 3D model - Other - 07111000024-1
click to zoom

07111000024 Details

  • Manufacturer Part Number:

    07111000024

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE
