0714300019 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

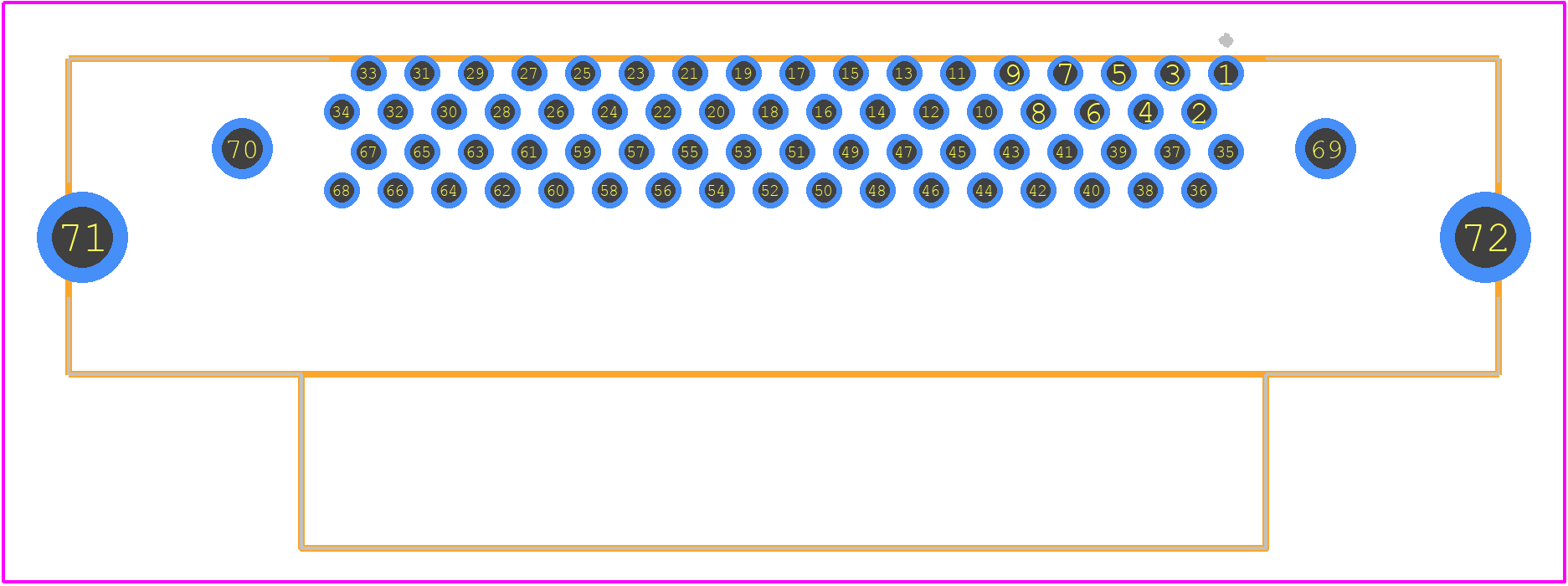

PCB Footprints

0714300019 - Molex PCB footprint - Other - Other - 0714300004

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0714300019
Part Number 0714300019
Manufacturer Molex
Pin Count 72
Part Category Connector
Package Category Other
Footprint Name Other - 0714300004
Released Date Nov 7, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

0714300019 Details

Manufacturer Part Number:
0714300019
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Molex
YTEOL:
0
Body/Shell Style:
RECEPTACLE
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Material:
POLYETHYLENE
Termination Type:
SOLDER
Total Number of Contacts:
68

0714300019 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
Yes, the 0714300019 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The operating temperature range for the 0714300019 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the 0714300019 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
No, the 0714300019 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

0714300019 Overview

Use the download button to access the 0714300019 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 07143, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
