0731000133 - Molex

Description: BNC Jack, Straight, PCB Receptacle, Through Hole, Brass Body, Nickel (Ni) Plated, 22.30mm Height, 50 Ohms

Download 0731000133 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0731000133 - Molex - PCB symbol
click to zoom
PCB Footprints

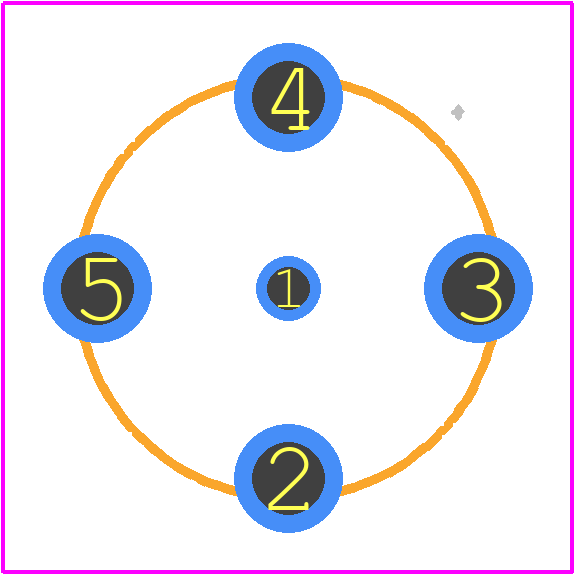

0731000133 - Molex PCB footprint - Other - Other - 0731000133-3
click to zoom
3D Models
0731000133 - Molex - 3D model - Other - 0731000133-3
click to zoom

0731000133 Details

  • Manufacturer Part Number:

    0731000133

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LOW HALOGEN, ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Taiwan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Molex

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER
