0731000153 - Molex

Description: BNC Jack, Straight, PCB Receptacle, Through Hole, Brass Body, Nickel (Ni) Plated, 16.65mm Height, Tray, 50 Ohms

Download 0731000153 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0731000153 - Molex - PCB symbol
click to zoom

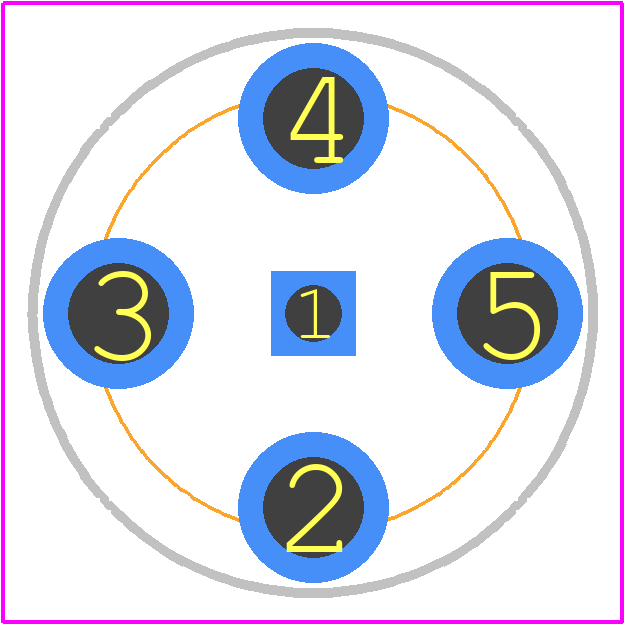

PCB Footprints
0731000153 - Molex PCB footprint - Other - Other - 0731000153
click to zoom
3D Models
0731000153 - Molex - 3D model - Other - 0731000153
click to zoom

0731000153 Details

  • Manufacturer Part Number:

    0731000153

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LOW HALOGEN, ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Molex

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

0731000153 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0731000153 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0731000153 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 0731000153 connector is 10 mm. Exceeding this radius may cause damage to the cable or connector.
  • The 0731000153 connector is designed to operate in a temperature range of -40°C to 105°C and can withstand humidity up to 95%. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in harsh environments.
  • The 0731000153 connector is designed for use with specific cable types and sizes. Using a different cable type or size may affect the connector's performance and reliability. It's recommended to consult with Molex or a qualified engineer to determine the compatibility of the connector with alternative cable types or sizes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0731000153 Overview

Use the download button to access the 0731000153 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07310, or try a keyword search, such as RF BNC Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
