07311000019 - HARTING

Description: Mini-Coax angled module, 6pin, press-in, 1SU - phased out

Download 07311000019 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

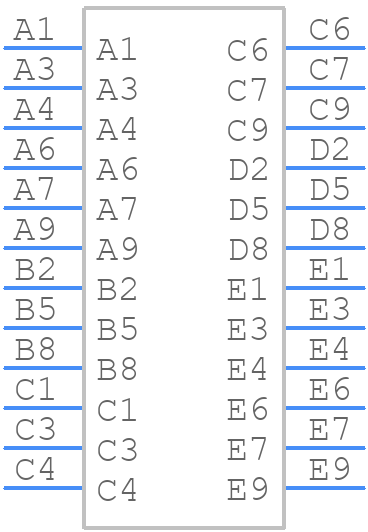

07311000019 - HARTING - PCB symbol
click to zoom
PCB Footprints

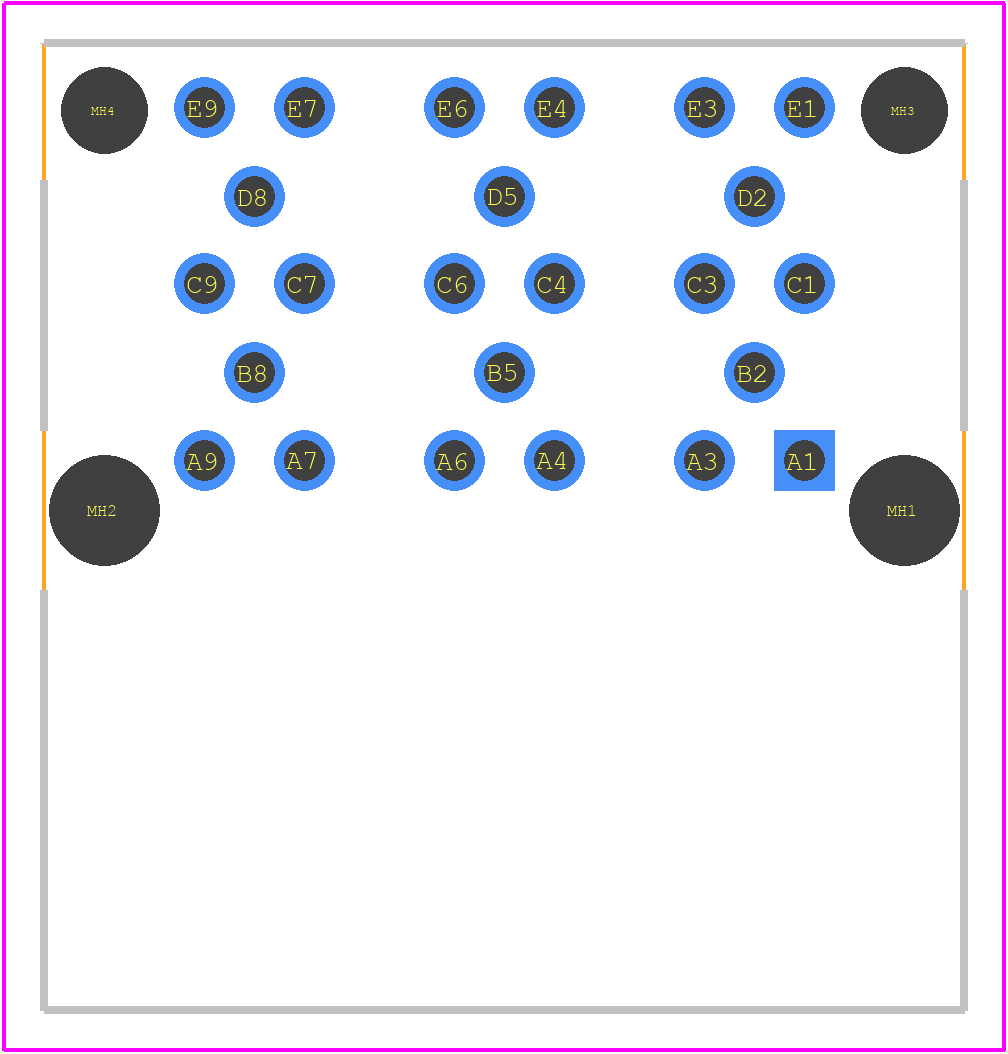

07311000019 - HARTING PCB footprint - Other - Other - 07311000019-1
click to zoom
3D Models
07311000019 - HARTING - 3D model - Other - 07311000019-1
click to zoom

07311000019 Details

  • Manufacturer Part Number:

    07311000019

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE
