0731711900 - Molex

Description: BNC Jack, Straight, PCB Receptacle, Through Hole, Die Cast Body, Nickel (Ni) Plated, 16.60mm Height, Bulk Bag 75 Ohms

Download 0731711900 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0731711900 - Molex - PCB symbol
click to zoom
PCB Footprints

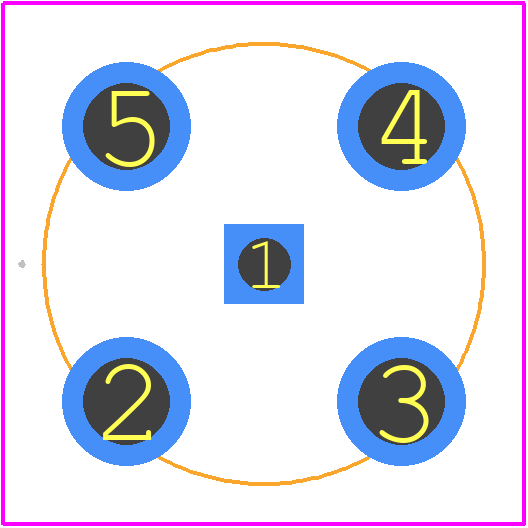

0731711900 - Molex PCB footprint - Other - Other - 0731711900-3
click to zoom
3D Models
0731711900 - Molex - 3D model - Other - 0731711900-3
click to zoom

0731711900 Details

  • Manufacturer Part Number:

    0731711900

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Molex

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    75 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

0731711900 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 0731711900 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 0731711900 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0731711900 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • No, the 0731711900 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a reliable connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0731711900 Overview

Use the download button to access the 0731711900 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07317, or try a keyword search, such as RF BNC Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
