0734152980 - Molex

Description: BNC Jack, Right-Angle, Dual Stack, PCB Receptacle, Tray, 50 Ohms

Download 0734152980 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0734152980 - Molex - PCB symbol
click to zoom
PCB Footprints

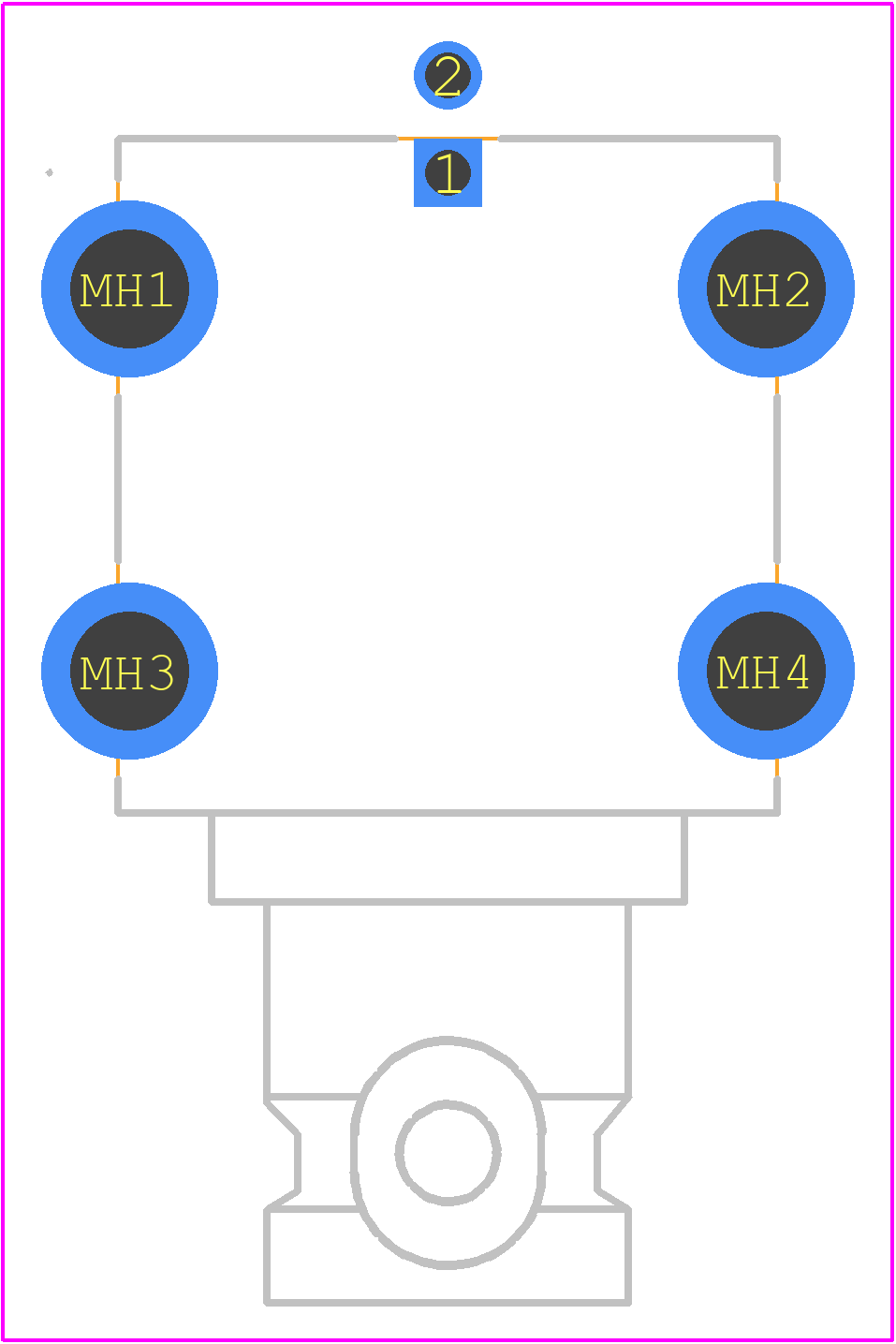

0734152980 - Molex PCB footprint - Other - Other - 0734152980-1
click to zoom
3D Models
0734152980 - Molex - 3D model - Other - 0734152980-1
click to zoom

0734152980 Details

  • Manufacturer Part Number:

    0734152980

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Molex

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Bright Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    STEEL

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    2

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

0734152980 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0734152980 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0734152980 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 0734152980 connector is 10 mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 0734152980 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The operating temperature range for the 0734152980 connector is -40°C to 105°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0734152980 Overview

Use the download button to access the 0734152980 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07341, or try a keyword search, such as RF BNC Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
