0759001431 - Molex

Description: MX150 Dual Row Header, Right-Angle, 6 Circuits, 1.25µm Nickel (Ni) Overall, 1.50µm Minimum Select Matte Tin (Sn) Plating Overall, 3.05mm PC Tail Length, Mating Pin Length 12.15mm

Download 0759001431 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0759001431 - Molex - PCB symbol
click to zoom
PCB Footprints

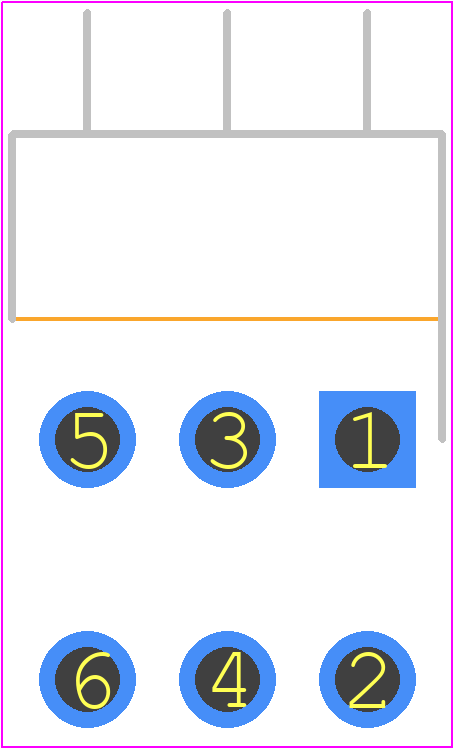

0759001431 - Molex PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - 0759001431
click to zoom
3D Models
0759001431 - Molex - 3D model - Header, Unshrouded - Right Angle PTH Pin - 0759001431
click to zoom

0759001431 Details

  • Manufacturer Part Number:

    0759001431

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Additional Feature:

    RATED CURRENT (POWER): 17A

  • Body Breadth:

    0.378 inch

  • Body Depth:

    0.546 inch

  • Body Length:

    0.413 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

0759001431 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0759001431 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0759001431 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 0759001431 connector is 10 mm. Exceeding this radius may cause damage to the cable or connector.
  • The 0759001431 connector is designed to operate in a temperature range of -40°C to 105°C and can withstand humidity up to 95%. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in harsh environments.
  • The 0759001431 connector is designed for use with 24 AWG wire. Using a different wire gauge or type may affect the connector's performance and reliability. It's recommended to consult with Molex or a qualified engineer to determine the suitability of alternative wire configurations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0759001431 Overview

Use the download button to access the 0759001431 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07590, or try a keyword search, such as Headers and Edge Type Connectors
