08-4513-10 footprint, schematic symbol and 3D model by ARIES

Symbol

click to zoom

PCB Footprints

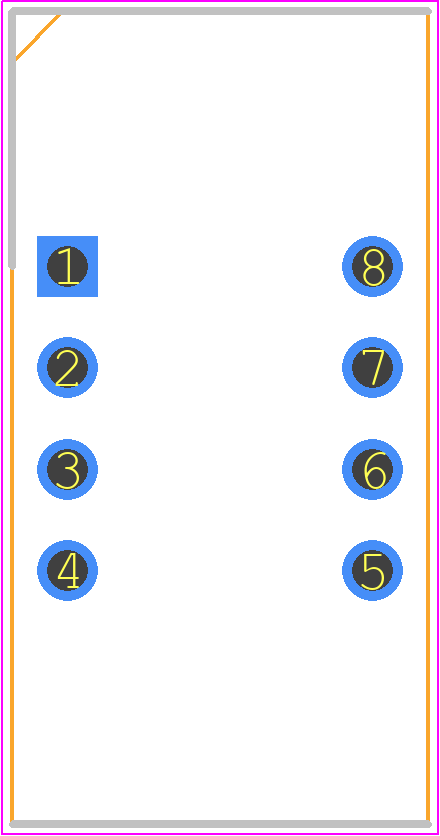

08-4513-10 - ARIES PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 08-4513-10

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 08-4513-10
Part Number 08-4513-10
Manufacturer ARIES
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 08-4513-10
Released Date Jul 27, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

08-4513-10 Details

Manufacturer Part Number:
08-4513-10
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Aries Electronics Inc
YTEOL:
7
Additional Feature:
STANDARD: UL 94V-0
Body Breadth:
0.5 inch
Body Depth:
0.165 inch
Body Length:
0.8 inch
Contact Configuration:
RECTANGLE
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
BRASS
Contact Style:
RND PIN-SKT
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP18
Housing Material:
NYLON46
JESD-609 Code:
e3
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
8
Operating Temperature-Max:
125 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.4 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

08-4513-10 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
Yes, the 08-4513-10 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
Yes, the 08-4513-10 is designed for automated assembly processes, including pick-and-place and wire-termination machines. However, it's recommended to consult with the manufacturer for specific guidance on assembly and processing.
The operating temperature range for the 08-4513-10 is -40°C to +125°C (-40°F to +257°F), making it suitable for a wide range of applications.
The 08-4513-10 has a sealed construction that provides protection against moisture and humidity. However, it's recommended to follow the manufacturer's guidelines for environmental sealing and protection to ensure reliable performance in harsh environments.

Trust Checks

Community Provided

System Verified

Community Approved

08-4513-10 Overview

Use the download button to access the 08-4513-10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 08-45, or try a keyword search, such as Sockets and Chip Carriers
