Littelfuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal performance, electrical connection, and reliability.
To select the correct fuse, consider factors such as the maximum voltage, current, and power rating of your circuit. You should also consider the fuse's interrupting rating, melting I²t, and cold resistance. Littelfuse provides a fuse selection guide or online tools to help with this process.
The operating temperature range for the 0828030.UXTHP is typically -40°C to 125°C, but this may vary depending on the specific application and environmental conditions. It's essential to check the datasheet or consult with Littelfuse for specific temperature ratings.
The 0828030.UXTHP fuse is designed for general-purpose applications, but it may not meet the requirements for high-reliability or safety-critical applications. Littelfuse offers specialized fuses for these types of applications, such as their High-Reliability or Automotive-grade fuses.
The 0828030.UXTHP fuse is designed for general-purpose applications and may not be suitable for high-vibration or harsh environments. Littelfuse offers specialized fuses with enhanced ruggedness and vibration resistance for these types of applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
0828030.UXTHP Overview

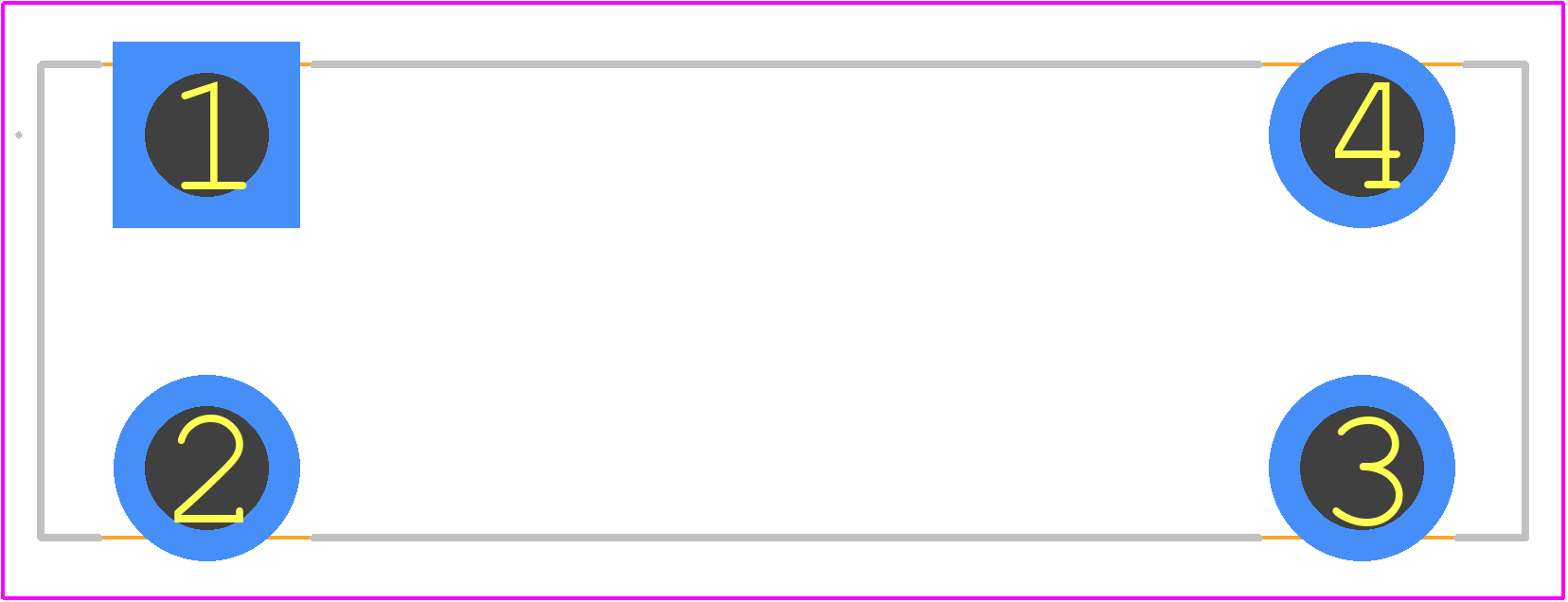

Use the download button to access the 0828030.UXTHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 08280,
or try a keyword search, such as Electric Fuses
