The recommended land pattern for the 0868LP15A020E is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a non-solder mask defined (NSMD) pad shape.
To handle the component's sensitivity to moisture, it is recommended to store the components in a dry environment, and to follow the recommended baking and drying procedures before reflow soldering.
The maximum reflow temperature for the 0868LP15A020E is 260°C, with a peak temperature of 240°C for a maximum of 20 seconds.
Yes, the 0868LP15A020E is designed for high-frequency applications up to 6 GHz, with a low insertion loss and high return loss.
The operating temperature range for the 0868LP15A020E is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
0868LP15A020E Overview

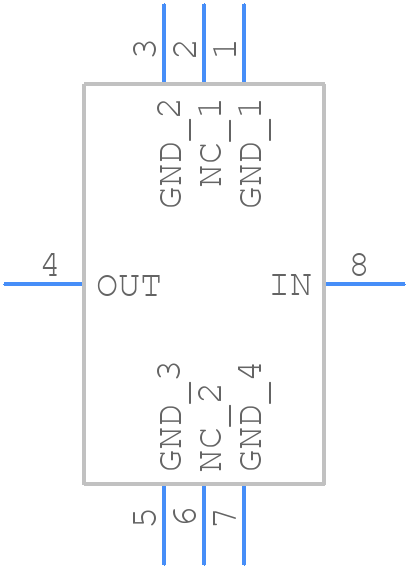

Use the download button to access the 0868LP15A020E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 0868L,
or try a keyword search, such as Ceramic Filters
