0878982026 - Molex

Description: C-Grid / SL Header, Surface Mount, Breakaway, Vertical, 20 Circuits, Tin (Sn) Overall Plating, Tube Packaging, without Cap, Lead-Free

Download 0878982026 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0878982026 - Molex - PCB symbol
click to zoom

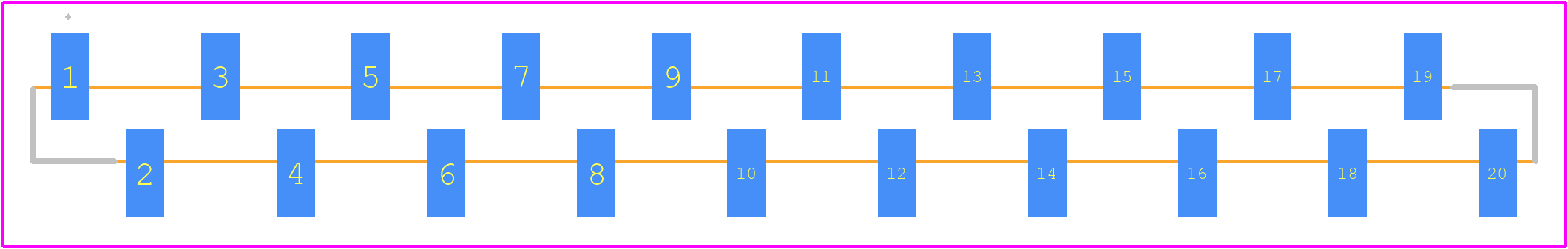

PCB Footprints
0878982026 - Molex PCB footprint - Other - Other - 0878982026-1
click to zoom
3D Models
0878982026 - Molex - 3D model - Other - 0878982026-1
click to zoom

0878982026 Details

  • Manufacturer Part Number:

    0878982026

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia, Malaysia, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

0878982026 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 0878982026 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 0878982026 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. It's essential to follow Molex's guidelines for environmental sealing and to consult with a Molex representative for specific requirements.
  • The maximum operating temperature for the 0878982026 connector is 105°C (221°F). Exceeding this temperature may affect the connector's performance and reliability.
  • While the 0878982026 connector is designed for AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's essential to consult with a Molex representative to ensure the connector's performance and reliability are not compromised.
