0879-2C1R-54 - BelFuse

Description: Conn RJ-45 F 16 POS Solder RA Thru-Hole 28 Terminal 2 Port Tray

Download 0879-2C1R-54 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

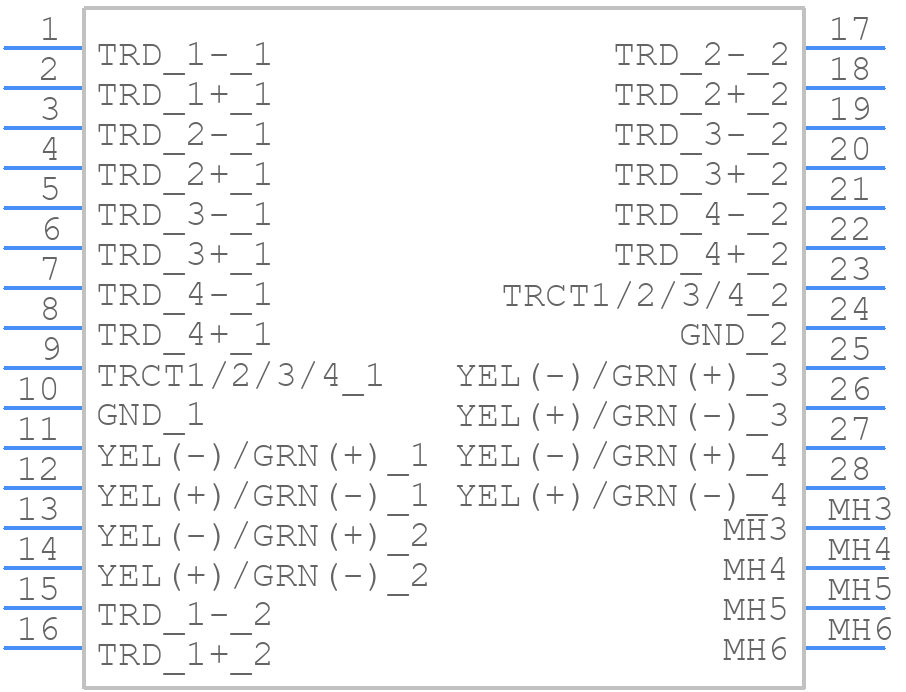

0879-2C1R-54 - BelFuse - PCB symbol
click to zoom
PCB Footprints

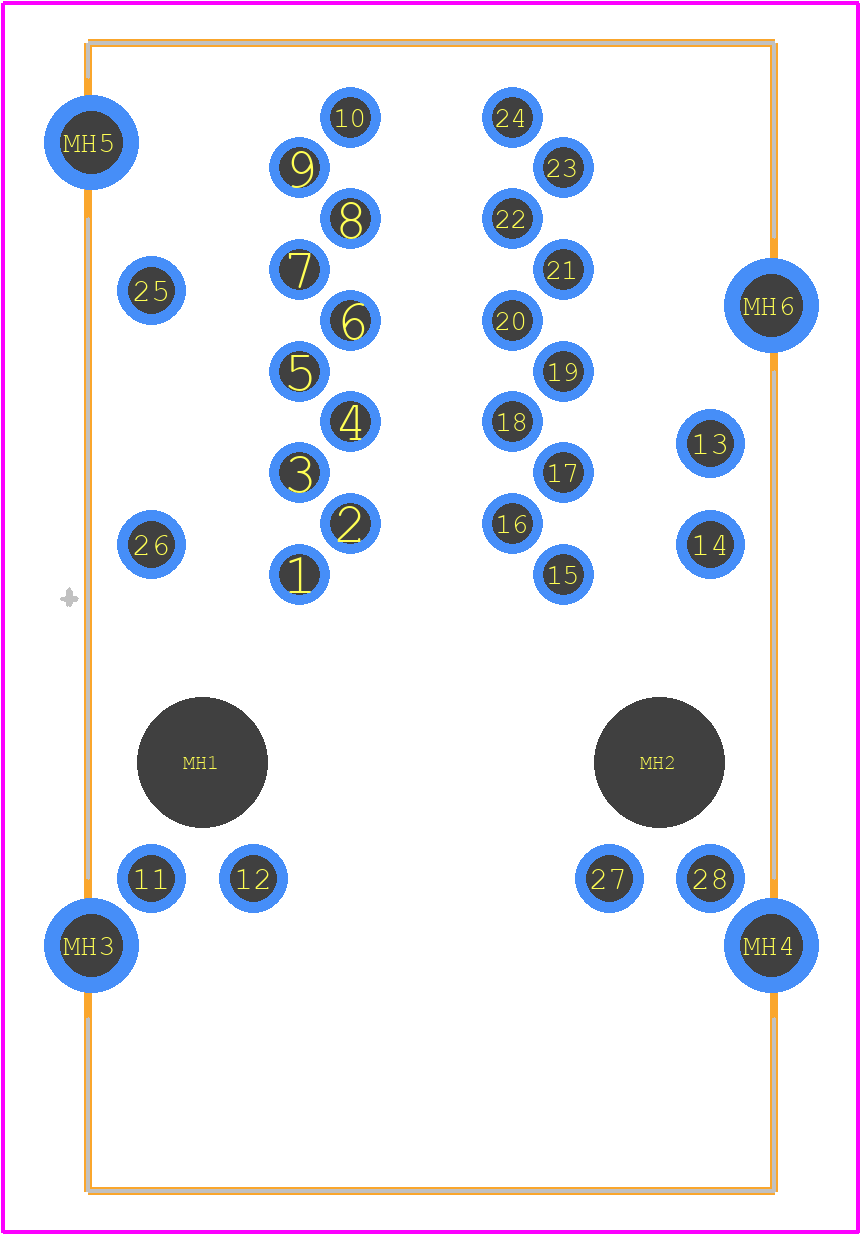

0879-2C1R-54 - BelFuse PCB footprint - Other - Other - 0879-2C1R-54-3
click to zoom
3D Models
0879-2C1R-54 - BelFuse - 3D model - Other - 0879-2C1R-54-3
click to zoom

0879-2C1R-54 Details

  • Manufacturer Part Number:

    0879-2C1R-54

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Bel Fuse

  • YTEOL:

    7.97

  • Additional Feature:

    OTHER STACKING CONNECTOR: 8 CONTACTS

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE/POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0
