09031642921222 - HARTING

Description: DIN C male angled, 64pin, PL1, NFF F1-I2 (rows a,c loaded)

Download 09031642921222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09031642921222 - HARTING - PCB symbol
click to zoom
PCB Footprints

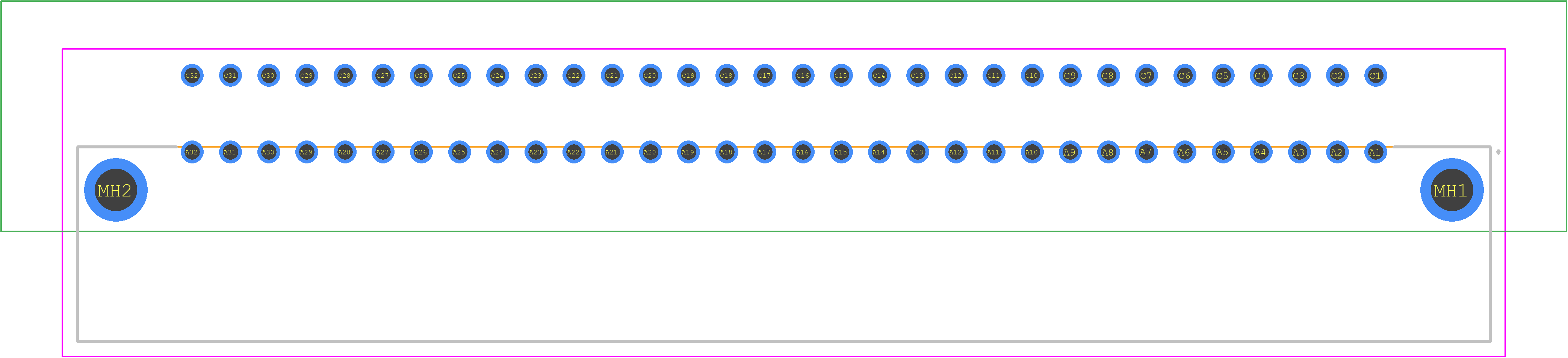

09031642921222 - HARTING PCB footprint - Other - Other - 09031642921222-2
click to zoom
3D Models
09031642921222 - HARTING - 3D model - Other - 09031642921222-2
click to zoom

09031642921222 Details

  • Manufacturer Part Number:

    09031642921222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

09031642921222 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09031642921222 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09031642921222 connector is designed to withstand high-vibration applications, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09031642921222 connector is designed for use in harsh environments, with an operating temperature range of -40°C to +125°C and resistance to humidity and moisture according to IP67 and IP69K standards.
  • The 09031642921222 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09031642921222 connector is designed to be compatible with other HARTING connectors and some third-party connectors, but compatibility should be verified before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09031642921222 Overview

Use the download button to access the 09031642921222 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09031, or try a keyword search, such as Headers and Edge Type Connectors
