Part Image

09032647824 - HARTING

Description: DIN C female straight 64pin, 2.9mm tails, PL3 (rows a,c loaded)

Download 09032647824 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032647824 - HARTING - PCB symbol
click to zoom

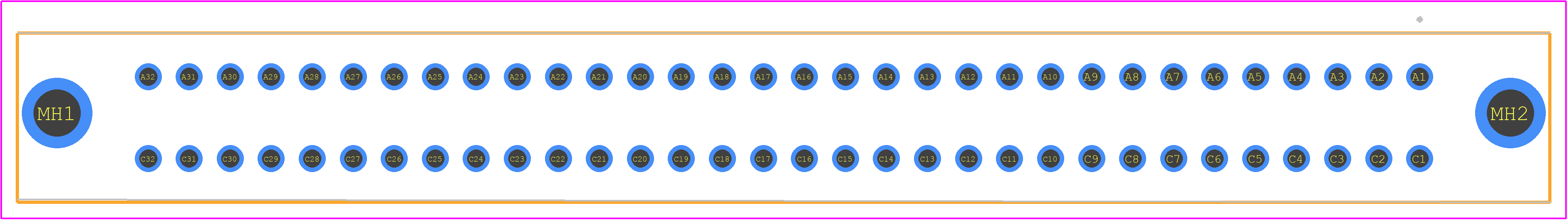

PCB Footprints
09032647824 - HARTING PCB footprint - Other - Other - 09032647824-1
click to zoom
3D Models
09032647824 - HARTING - 3D model - Other - 09032647824-1
click to zoom

09032647824 Details

  • Manufacturer Part Number:

    09032647824

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

09032647824 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.4 Nm to 0.6 Nm, as specified in the HARTING application notes.
  • Yes, the 09032647824 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
  • Yes, the 09032647824 connector is part of the HARTING Han series, which is compatible with other Han series connectors, but compatibility should be verified with HARTING or a qualified distributor.
  • The maximum operating temperature of the 09032647824 connector is 125°C, with a minimum operating temperature of -40°C.
  • Yes, the 09032647824 connector is designed to be resistant to harsh environments, with an IP67 rating for protection against dust and water, and resistance to various chemicals, but specific environmental conditions should be verified with HARTING or a qualified distributor.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032647824 Overview

Use the download button to access the 09032647824 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09032, or try a keyword search, such as Headers and Edge Type Connectors
