09032965825 - HARTING

Description: Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal

Download 09032965825 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032965825 - HARTING - PCB symbol
click to zoom
PCB Footprints

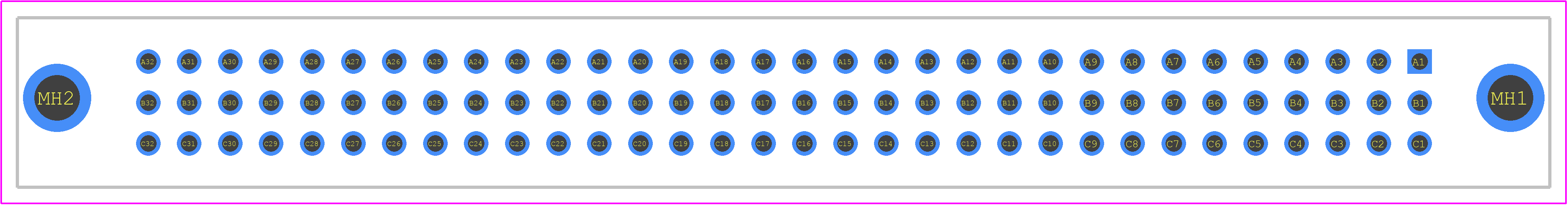

09032965825 - HARTING PCB footprint - Other - Other - 09032965825-1
click to zoom
3D Models
09032965825 - HARTING - 3D model - Other - 09032965825-1
click to zoom

09032965825 Details

  • Manufacturer Part Number:

    09032965825

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032965825 Overview

Use the download button to access the 09032965825 schematic symbol, PCB footprint, and 3D model.
