09037966861 - HARTING

Description: DIN C female straight 96pin, w/ coding, press-in 13mm tails, PL2 (posts PL3 Au)

Download 09037966861 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09037966861 - HARTING - PCB symbol
click to zoom
PCB Footprints

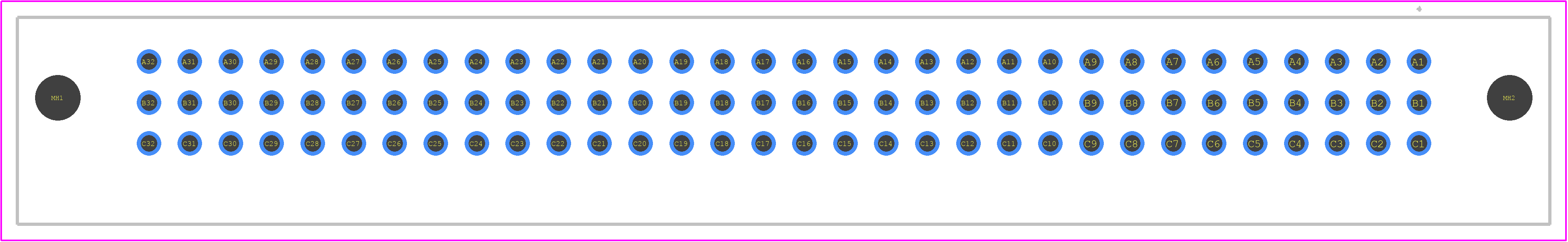

09037966861 - HARTING PCB footprint - Other - Other - 09037966861-3
click to zoom
3D Models
09037966861 - HARTING - 3D model - Other - 09037966861-3
click to zoom

09037966861 Details

  • Manufacturer Part Number:

    09037966861

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    96

09037966861 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09037966861 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09037966861 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 09037966861 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity range of up to 95% RH.
  • The 09037966861 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the 09037966861 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and mixing of different connectors within the series.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09037966861 Overview

Use the download button to access the 09037966861 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09037, or try a keyword search, such as Headers and Edge Type Connectors
