09046326921 - HARTING

Description: DIN D male angled 32pin, w/ coding, PL2

Download 09046326921 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

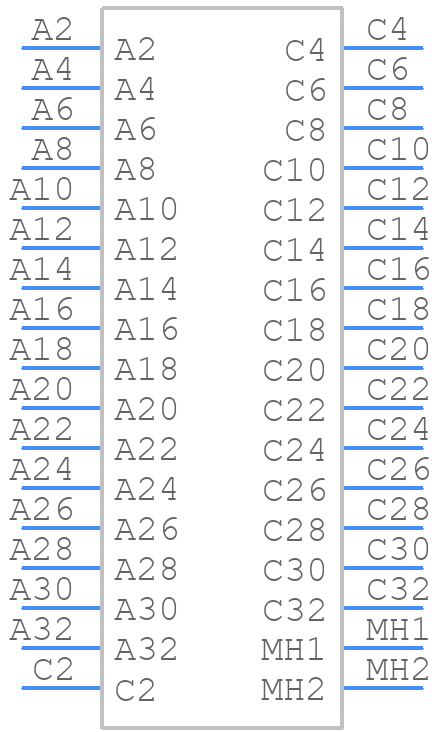

09046326921 - HARTING - PCB symbol
click to zoom
PCB Footprints

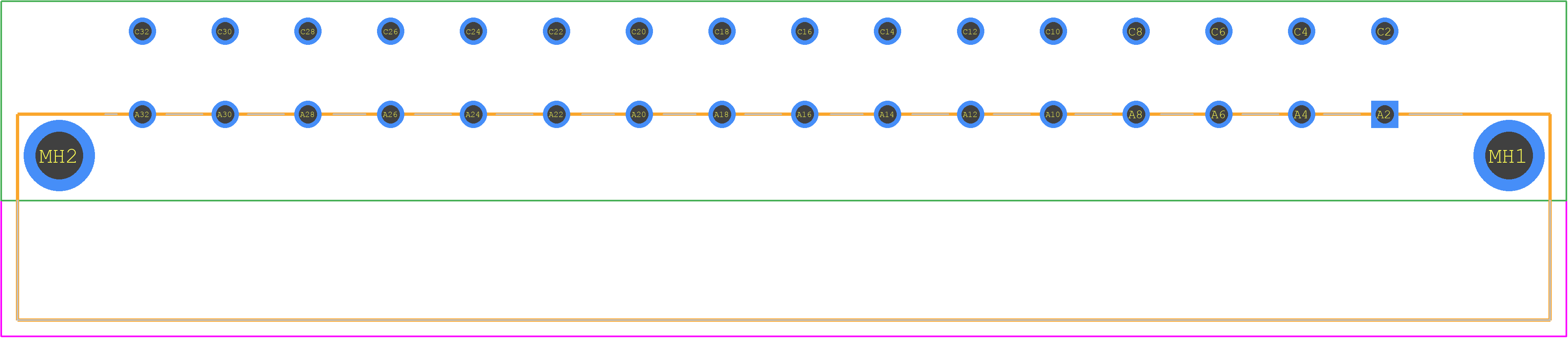

09046326921 - HARTING PCB footprint - Other - Other - 09046326921-2
click to zoom
3D Models
09046326921 - HARTING - 3D model - Other - 09046326921-2
click to zoom

09046326921 Details

  • Manufacturer Part Number:

    09046326921

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

09046326921 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09046326921 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09046326921 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category II.
  • Yes, the 09046326921 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
  • Yes, the 09046326921 connector is compatible with other HARTING connectors, including the Han series, and can be used in conjunction with them.
  • The maximum current rating of the 09046326921 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09046326921 Overview

Use the download button to access the 09046326921 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09046, or try a keyword search, such as Headers and Edge Type Connectors
