Technical Content
Part Image

09062152857 - HARTING

Description: Female connector, 15-pin, 6.5 mm, gray, 09062152857

Download 09062152857 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

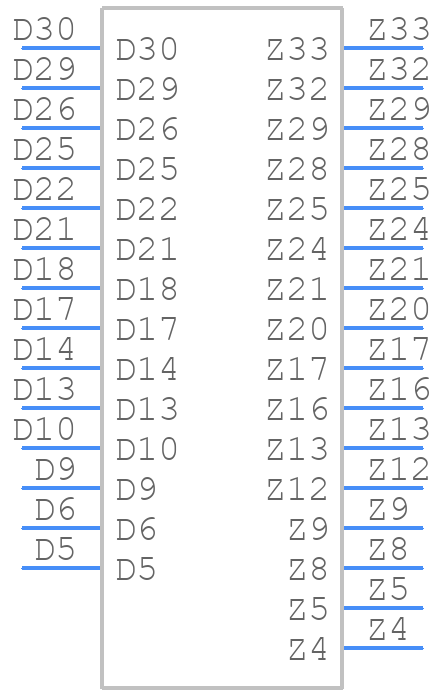

Symbol
09062152857 - HARTING - PCB symbol
click to zoom

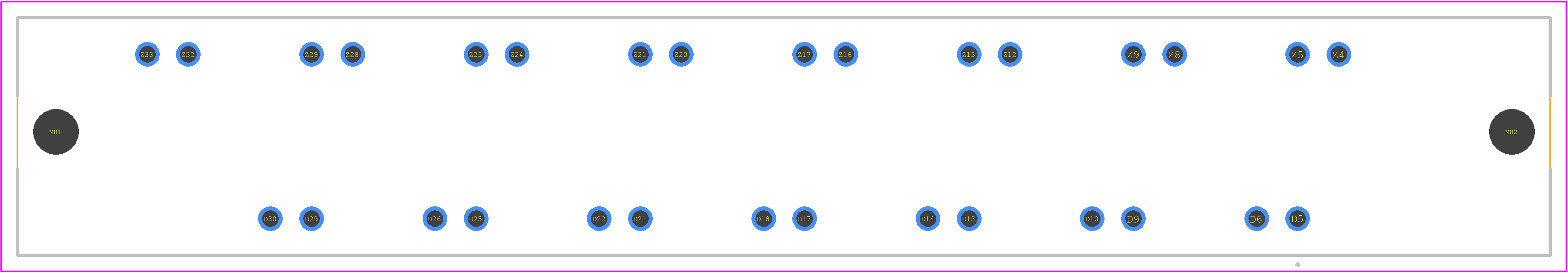

PCB Footprints
09062152857 - HARTING PCB footprint - Other - Other - 09062152857_1
click to zoom
3D Models
09062152857 - HARTING - 3D model - Other - 09062152857_1
click to zoom

09062152857 Details

  • Manufacturer Part Number:

    09062152857

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09062152857 Overview

Use the download button to access the 09062152857 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09062, or try a keyword search, such as Headers and Edge Type Connectors
