09151172703 - HARTING

Description: Han M23 Signal, 17pin Female Insert for pcb solder termination (17 1mm contacts)

Download 09151172703 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09151172703 - HARTING - PCB symbol
click to zoom
PCB Footprints

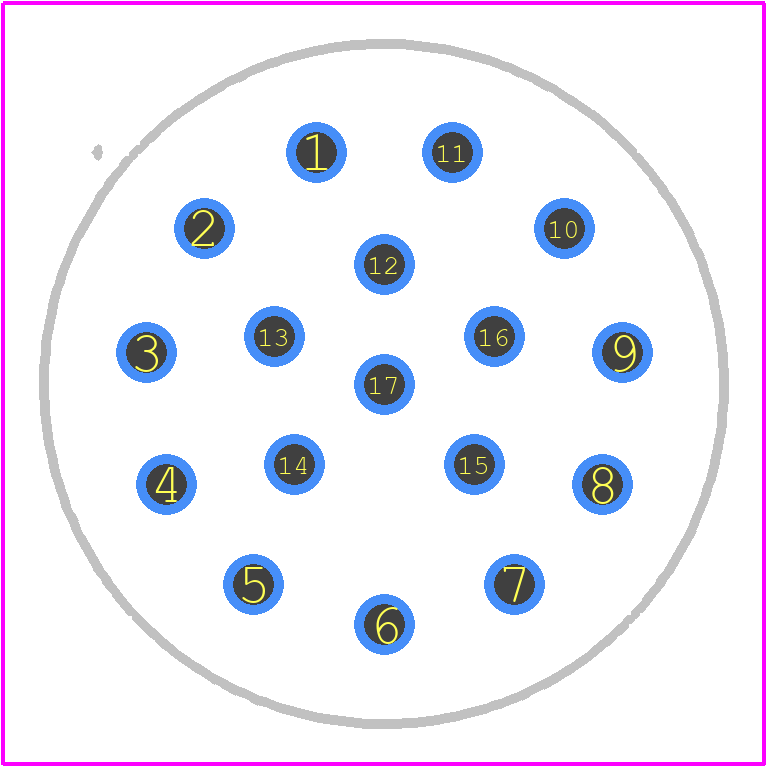

09151172703 - HARTING PCB footprint - Other - Other - 9151172703-2
click to zoom
3D Models
09151172703 - HARTING - 3D model - Other - 9151172703-2
click to zoom

09151172703 Details

  • Manufacturer Part Number:

    09151172703

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

09151172703 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09151172703 connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING connector assembly instructions.
  • Yes, the 09151172703 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 09151172703 connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10g acceleration.
  • The operating temperature range of the 09151172703 connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and transportation applications.
  • Yes, the 09151172703 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors and accessories.
