STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Body Breadth:
0.366 inch
Body Depth:
0.372 inch
Body Length:
3.516 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
YES
Filter Feature:
NO
IEC Conformance:
YES
Insulation Resistance:
1000000000 Ω
Insulator Color:
GRAY
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
30u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Length:
0.114 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
64
UL Flammability Code:
94V-0
09185645324 Frequently Asked Questions (FAQs)
The recommended torque for screwing the 09185645324 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09185645324 connector is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration. However, it's essential to follow the recommended installation and maintenance procedures to ensure reliable operation.
The 09185645324 connector is designed for signal transmission up to 1 Gbps, making it suitable for high-speed data transmission applications. However, the actual data transmission speed may vary depending on the specific cable and system design.
Yes, the 09185645324 connector is designed to be compatible with other HARTING products, including cables, adapters, and connectors. However, it's essential to verify compatibility before using the connector with other HARTING products.
The typical lead time for delivery of the 09185645324 connector varies depending on the region, quantity, and availability. It's best to contact HARTING's sales team or authorized distributors for the most up-to-date lead time information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09185645324 Overview

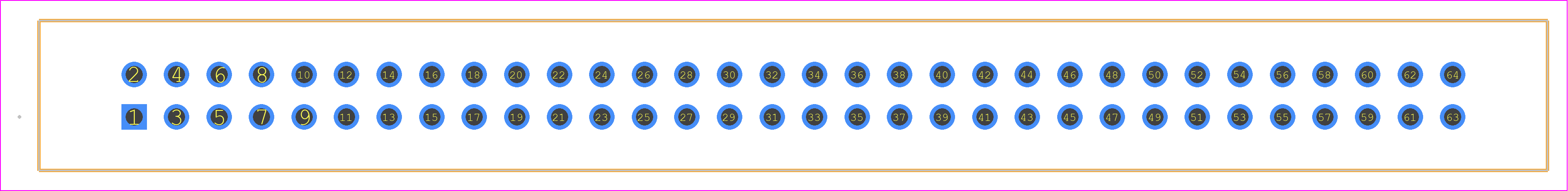

Use the download button to access the 09185645324 schematic symbol, PCB footprint, and 3D model.
