STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Board Mounting Option:
HOLE .099-.111
Body Breadth:
0.331 inch
Body Depth:
0.681 inch
Body Length:
4.484 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
YES
Dielectric Withstanding Voltage:
1000VAC V
Durability:
200 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BEIGE
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LATCH & EJECT
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Polarization Key:
CTR W/GUIDE SLOTS
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.114 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
64
UL Flammability Code:
94V-0
09185646904 Frequently Asked Questions (FAQs)
The recommended torque for screwing the 09185646904 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09185646904 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 61373 Cat. 2). However, it's recommended to consult with HARTING's technical support for specific vibration requirements.
Yes, the 09185646904 connector is designed to operate in harsh environmental conditions, including temperatures ranging from -40°C to 125°C, and is resistant to moisture, dust, and chemicals. However, it's recommended to consult with HARTING's technical support for specific environmental requirements.
The 09185646904 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
Yes, the 09185646904 connector is part of the HARTING Han series and is compatible with other Han series connectors. However, it's recommended to consult with HARTING's technical support to ensure compatibility with specific connectors and applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09185646904 Overview

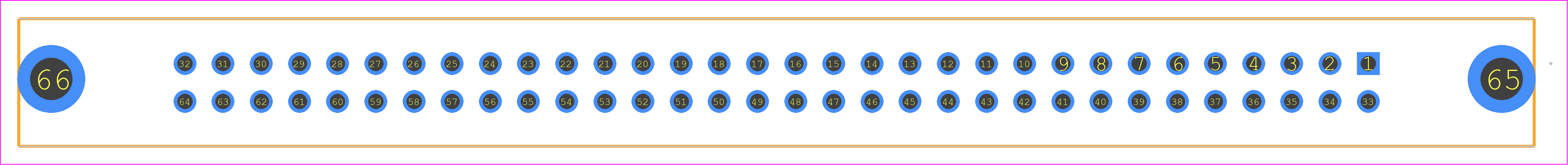

Use the download button to access the 09185646904 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09185,
or try a keyword search, such as Headers and Edge Type Connectors
