09234486824 - HARTING

Description: DIN 2C female straight 48pin, w/ board locks, 2.9mm tails, PL2

Download 09234486824 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09234486824 - HARTING - PCB symbol
click to zoom

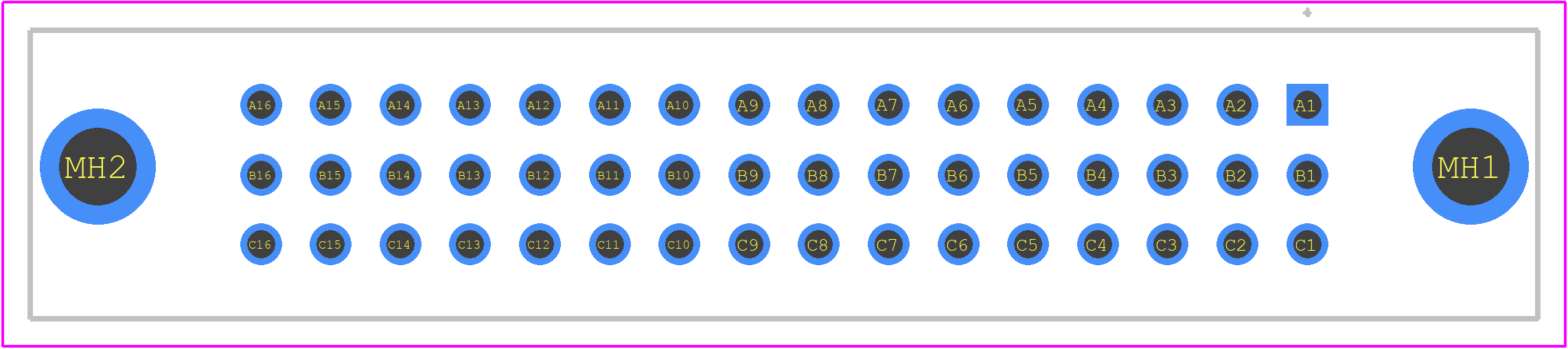

PCB Footprints
09234486824 - HARTING PCB footprint - Other - Other - 09234486825-1
click to zoom
3D Models
09234486824 - HARTING - 3D model - Other - 09234486825-1
click to zoom

09234486824 Details

  • Manufacturer Part Number:

    09234486824

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09234486824 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09234486824 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09234486824 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperature extremes, humidity, and exposure to water and dust.
  • Yes, the 09234486824 connector is designed to withstand high-vibration environments and can be used in applications such as industrial machinery, transportation, and construction equipment.
  • Yes, the 09234486824 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.
  • The maximum operating temperature of the 09234486824 connector is 125°C, making it suitable for use in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09234486824 Overview

Use the download button to access the 09234486824 schematic symbol, PCB footprint, and 3D model.
