09251306921 - HARTING

Description: DIN 3C male angled 30pin, PL2

Download 09251306921 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

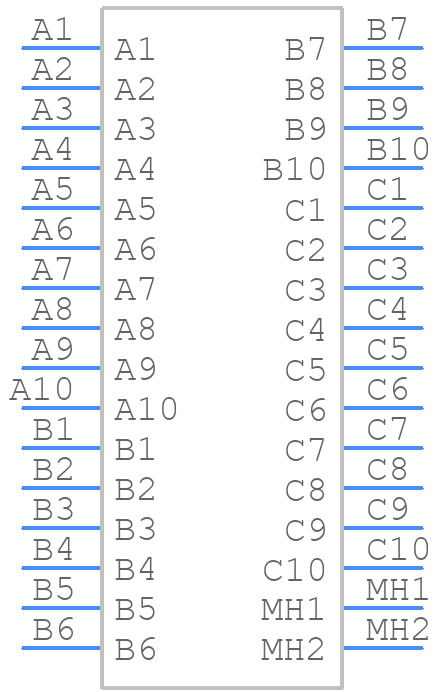

09251306921 - HARTING - PCB symbol
click to zoom
PCB Footprints

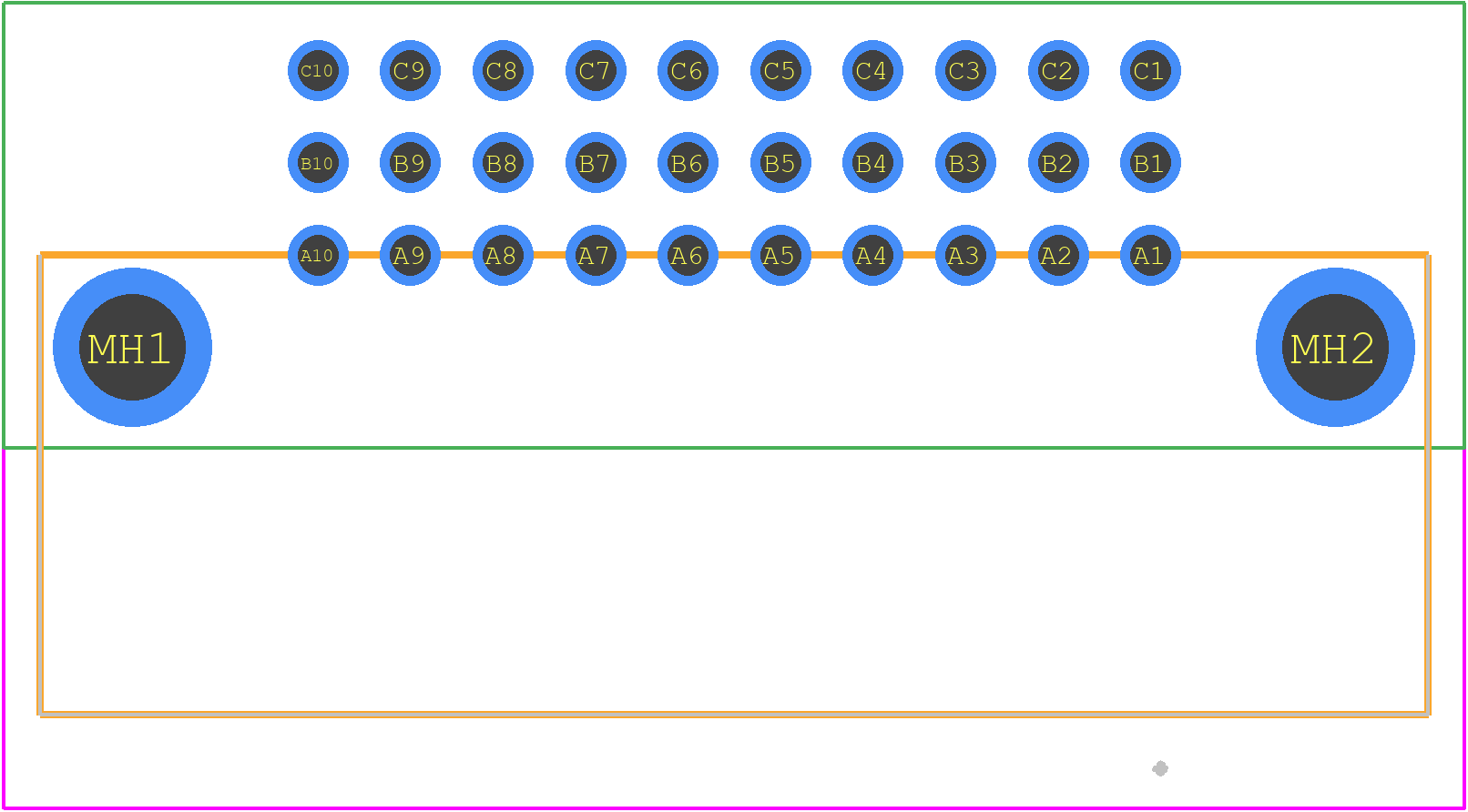

09251306921 - HARTING PCB footprint - Other - Other - 09251306921-3
click to zoom
3D Models
09251306921 - HARTING - 3D model - Other - 09251306921-3
click to zoom

09251306921 Details

  • Manufacturer Part Number:

    09251306921

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER PALLADIUM NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

09251306921 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09251306921 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09251306921 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09251306921 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
  • Yes, the 09251306921 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The maximum current rating of the 09251306921 connector is 40 A per contact, depending on the specific application and environmental conditions.
